# Wheel Hub Bearing Inspection Plan: Dimensions, Noise, Vibration and ABS Tests

A wheel hub bearing inspection plan defines what is checked, where it is checked, how it is measured, how often it is sampled, what constitutes acceptance, and what happens when a result fails. It should connect the drawing and customer requirements to actual incoming, in-process, assembly, final, packaging, and release controls.

Inspection does not replace capable processes. A plan that relies on sorting finished hubs cannot compensate for uncontrolled steel, heat treatment, grinding, cleanliness, assembly, lubrication, or sensor configuration. The strongest plan uses prevention, process monitoring, and valid measurement systems, with final inspection as a release layer.

Build the Plan From Requirements and Risk

Start with the released product and process evidence:

• customer and supplier drawings and specifications;
• part, revision, application and saleable kit configuration;
• process flow and manufacturing route;
• DFMEA where the supplier owns design responsibility;
• PFMEA and control plan;
• special characteristics and customer-specific requirements;
• prior product, launch, complaint and warranty lessons;
• PPAP and sample-approval commitments;
• applicable test methods, gauges and laboratories;
• regulatory or safety requirements where relevant.

Convert every requirement into a characteristic matrix. Each line should state the exact feature, specification, method, stage, sample, frequency, record, owner and reaction plan.

Inspection Stages

The actual content depends on the bearing generation and application. A Gen 1 press-in bearing needs different interfaces and tests from a Gen 3 hub with sensor and cable.

Incoming Material and Component Checks

Steel and forged/machined rings

Verify supplier, grade, standard, heat identity, delivery condition, certificate, physical tags, dimensions, surface condition, corrosion, and specified chemistry, cleanliness, macrostructure, hardenability or other tests. Use the bearing steel verification checklist to define evidence.

Rolling elements and cages

Confirm supplier part/revision, lot, quantity, size/class, material, hardness, geometry, surface condition, cleanliness and packaging according to specification. Prevent mixed lots and damaged containers.

Seals and slingers

Inspect identity, dimensions, lip geometry, material/color only as supporting identity, reinforcement, magnetic encoder configuration where integrated, contamination, deformation, shelf life and packaging. Visual color is not proof of compound or function.

Grease

Verify approved product, supplier lot, shelf life, container condition, storage, certificate where required, and risk-based identity or performance tests. Transfer identity into the dispensing system.

Studs, nuts, bolts and circlips

Confirm thread, length, grade/material, coating, dimensions, hardness/mechanical requirements, appearance and lot. Loose hardware must match the controlled kit BOM.

ABS sensors and encoders

Verify supplier part, revision, signal/target type, active side, pole or tooth requirement where specified, cable length, connector, pins, brackets, clips, functional results and handling condition.

Dimensional Inspection

Wheel hub dimensions form a connected geometry, so datum definitions matter. Use released drawing datums and measurement methods.

Common features

• bearing bore, outside diameter and width;
• flange outside diameter and thickness;
• wheel and rotor pilot diameters;
• wheel stud/bolt PCD and fastener features;
• knuckle mounting PCD, holes and threads;
• datum-to-datum flange offset and overall envelope;
• spline count, profile, gauge result and engagement;
• seal and encoder position;
• cable/connector location;
• mounting-face flatness and perpendicularity;
• wheel/rotor face runout;
• stud position and installed height.

The flange-dimensions and bolt-pattern guide defines these fields. Do not use an unlabeled “height” or “diameter” column.

Measurement Method Matrix

Calibrated equipment is necessary, but MSA must show that the complete method can make the required decision.

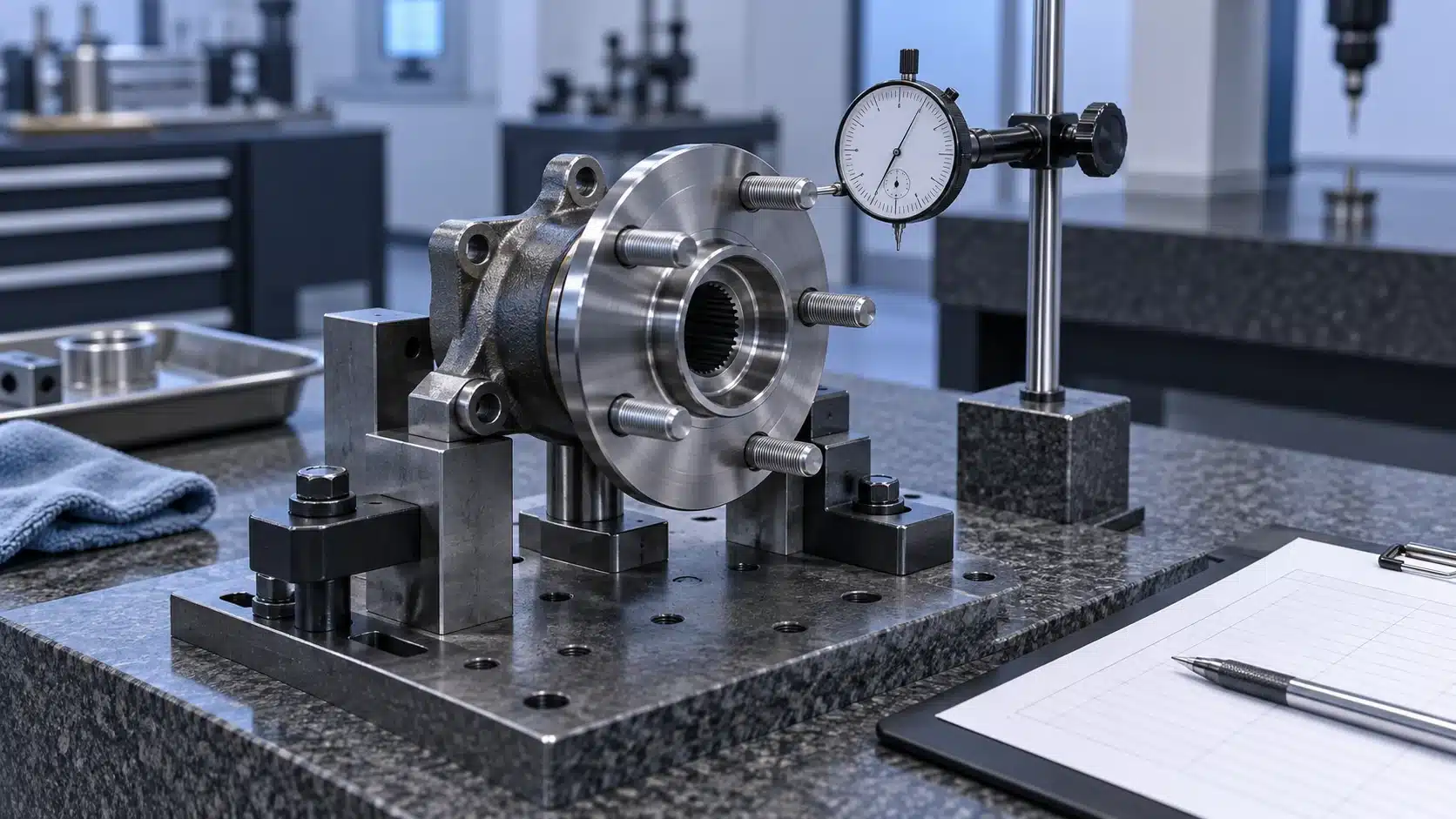

Runout and Rotational Geometry

Flange runout can affect brake and wheel interfaces. The report must state datum, fixture, clamping condition, measurement radius, indicator orientation, rotational method and acceptance.

Inspect fixtures for wear, chips and burrs. A high reading can come from the part, fixture, dirt or setup. Confirm a failure using the reaction plan; do not repeatedly remount until a passing value appears without retaining all results.

For assembly runout, define whether the hub is measured unloaded or under specified clamp/load. Do not publish a universal limit without the product drawing.

Clearance, Preload and Rotational Torque

The internal design may use clearance, controlled preload, or an integrated setting. The inspection method can involve axial/radial displacement, rotational torque or a design-specific assembly characteristic.

Control test temperature, rotation history, speed, fixture, axial/radial load, seal condition and grease distribution. A freshly assembled greased hub can show transient behavior. Define conditioning and stabilization in the test specification.

Hand feel is not an objective release method.

Noise and Vibration Testing

Noise/vibration tests can detect assembly contamination, raceway geometry, surface defects, rolling-element issues, lubrication and damage. A valid test specifies:

• test machine and fixture;
• mounting/clamping and orientation;
• speed points and acceleration/deceleration;
• radial/axial load where applicable;
• temperature and conditioning;
• sensor type, location and calibration;
• frequency bands or metrics;
• background/noise-floor controls;
• master/reference parts and verification frequency;
• product-specific acceptance limits;
• raw-data and result retention;
• response to tester alarm or correlation drift.

A dB value from another hub family is not an acceptance limit. Noise-test data should link to the product or lot and test program revision.

ABS Encoder and Sensor Tests

An ABS-related final inspection should match the product architecture. It may check encoder presence, active side, pole pattern, runout/position, signal amplitude or waveform, sensor function, cable/connector continuity, pinout, insulation, bracket and clips.

Use product-specific reference equipment and protect magnetic surfaces from ferrous debris. Store signal result and configuration identity. A visual check cannot prove the correct pole pattern or electrical behavior.

Review ABS magnetic encoder handling for additional controls.

Seal, Grease and Cleanliness Inspection

Seal checks can include identity, orientation, seating, lip damage, deformation, position and leak or functional testing where specified. Inspect after operations that could damage the seal, not only before assembly.

Grease controls can include product/lot scan, dispensing equipment, fill setting, mass or volume verification, distribution, contamination prevention and line clearance. Sampling should represent startup, changeover and production.

Cleanliness requirements need a defined extraction/analysis method, area or component scope, particle sizing/classification, blank control and acceptance. A visual “clean” status is insufficient when technical cleanliness is specified.

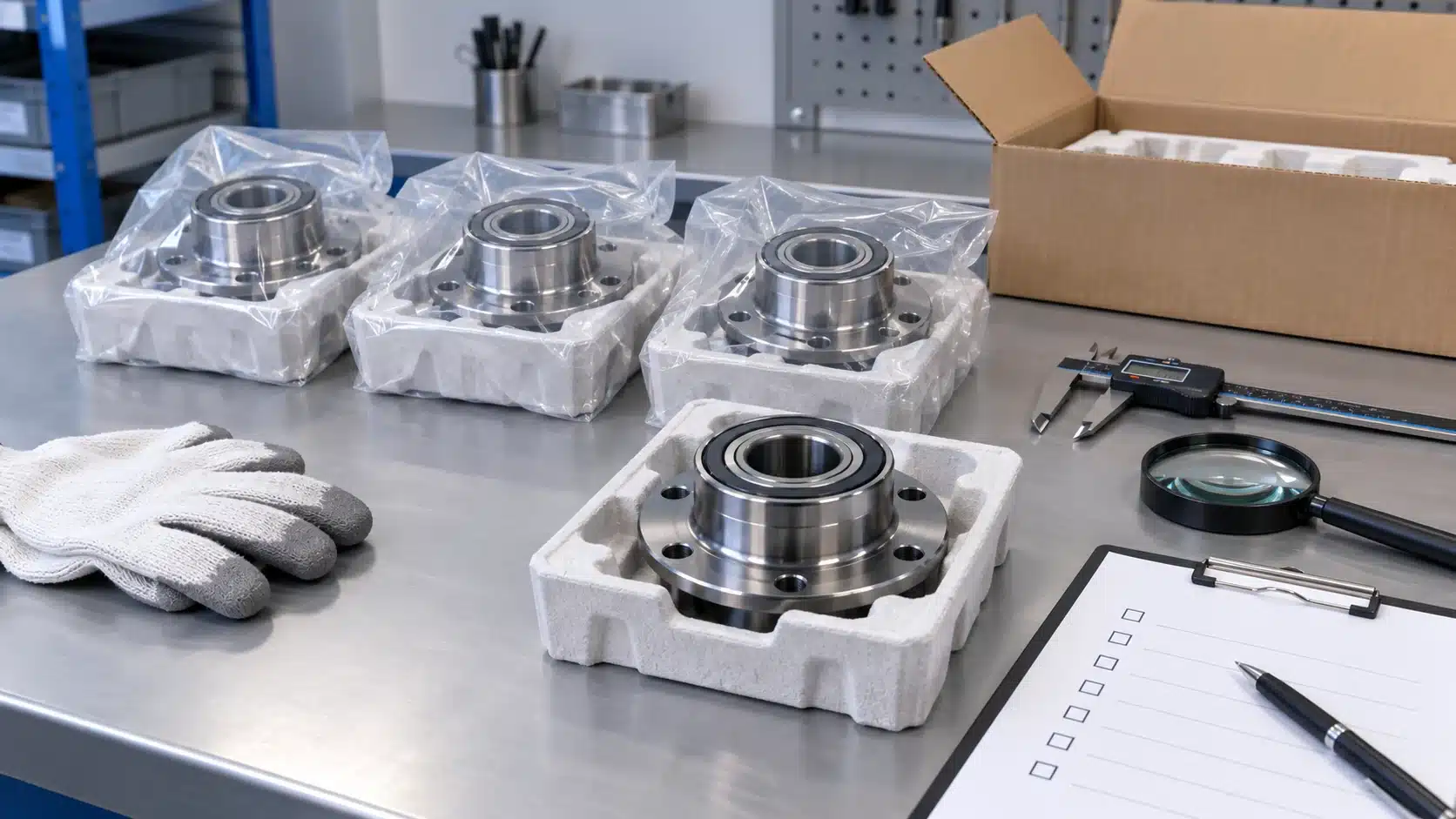

Appearance and Handling Checks

Appearance criteria should use controlled defect definitions and reference samples/images. Cover:

• rust, dents, scratches and burrs;
• flange and pilot surface damage;
• stud/thread damage;
• seal/encoder contact damage;
• coating and marking;
• loose chips or ferrous debris;
• cable/connector and bracket;
• protective caps and rust preventive;
• kit contents and packaging.

Train inspectors and conduct attribute agreement studies. Vague standards such as “no serious scratch” create inconsistent decisions.

Sampling Strategy

Sampling depends on characteristic risk, process capability, customer requirement, control method and consequence. Identify the lot basis and selection logic.

Events that may require increased control

• new launch or PPAP run;
• setup, changeover or first-off;
• new material/component lot;
• tool, wheel, dresser, fixture or program change;
• maintenance or equipment repair;
• process alarm or adjustment;
• operator/shift change where risk requires;
• supplier or sub-tier change;
• return from shutdown;
• prior nonconformance or complaint;
• packaging/label change.

Reduced inspection should be evidence-based, approved and reversible. It must not hide an incapable process.

Reaction Plan

Every characteristic needs a reaction plan that can be executed immediately.

1. stop or control production where required;
2. identify and segregate product since the last known acceptable check;
3. preserve failed result and actual process data;
4. verify equipment and method without erasing the original result;
5. notify defined roles;
6. inspect the suspect scope under an approved plan;
7. identify root cause and correct the process;
8. disposition product through authorized channels;
9. restart with defined verification;
10. trace affected shipments/customers if escape is possible;
11. document effectiveness.

“Adjust and recheck” is not adequate because it does not contain product made before the adjustment.

Records and Traceability

The inspection record should link result to part/revision, product/lot, material/component lots, machine/line, fixture/gauge/tester, program revision, date/time, operator or system, actual values, specification, status, reaction and release.

Protect raw data and audit trails. Manual corrections should preserve the original, reason, approver and time. Use the traceability model to connect results forward to shipment.

Layered Verification and Product Audits

Independent audits should check that the control plan is being followed and that the product still conforms. Select across shifts, lines, lots and characteristics. Include document revision, gauge status, method execution, records, product identity, traceability and reaction-plan knowledge.

Product audits should not become a second final inspection that masks poor process control. Feed findings into PFMEA, control plan, training and corrective action.

Managing Inspection Plan Revisions

Revise the plan when drawings, materials, sub-suppliers, equipment, tooling, software, gauges, test programs, sampling, packaging or customer requirements change. Link the effective revision to production lots and prevent obsolete plans from remaining at workstations.

Before reducing or deleting a check, document the reason, risk review, capability and complaint history, customer approval where required, and the replacement prevention control. After implementation, verify that operators, automated systems, inspection programs and records use the same revision. A document update is incomplete if an old CMM or noise-test program remains active.

Inspection Plan Audit Checklist

• all drawing balloons and notes have a control;
• special characteristics are consistent across documents;
• methods and datums are unambiguous;
• MSA supports each important decision;
• frequencies cover startup, change and ongoing production;
• functional tests use product-specific programs and limits;
• raw materials and outsourced processes are represented;
• inspection data link to traceable lots;
• reaction plans define suspect scope and restart;
• failed results cannot be deleted or retested away;
• laboratories and reference standards are current;
• packaging, labels and kit contents are included;
• periodic tests and audits have owners and due dates;
• changes trigger review and revalidation;
• actual shop-floor practice matches the approved plan.

Frequently Asked Questions

Does 100% final inspection guarantee defect-free hubs?

No. Detection has limitations, some tests are destructive, and final inspection cannot replace stable upstream processes. Use risk-based prevention, monitoring and validated tests.

Is calibration the same as MSA?

No. Calibration relates the instrument to a reference; MSA evaluates the complete measurement process for the intended decision.

Can one noise-test limit cover every wheel hub?

Not without validated family evidence. Fixture, speed, load, geometry, seal and specification differ. Use approved product/family limits.

Should all dimensions be measured on every part?

The control strategy depends on risk, capability and requirements. Full layout is often periodic or event-driven, while production controls target CTQs with approved sampling or 100% methods.

What is the most important inspection record?

There is no single record. Conformity depends on a linked set of material, process, measurement, functional, traceability and release evidence.

Final Takeaway

A reliable wheel hub bearing inspection plan converts product requirements and process risks into executable controls. Define characteristics and methods, validate measurement systems, inspect at the correct stage, link results to traceable lots, and make reaction plans specific enough to contain suspect product.

Jinan Huayuan Auto Bearing can discuss an inspection plan when the buyer supplies the drawing, application/configuration, special characteristics, test specifications, sampling, PPAP and customer-specific requirements. No product-specific limit, capability or test result is implied by this article.
