Deep Groove Ball Bearings
Premium Deep Groove Ball Bearings – HJDP Quality Solutions
Overview
HJDP Deep Groove Ball Bearings are the most widely used bearing type in the world. Engineered for high-speed operation and high precision, our bearings offer low friction, minimal noise, and extreme durability.
At HJDP, we specialize in providing industrial-grade bearings that meet the exact performance standards of global premium brands like SKF, NTN, and NSK, but at a significantly more competitive price point.
Product Introduction
What are Deep Groove Ball Bearings?
Deep groove ball bearings are the most commonly used bearing type due to their simple design, non-separability, and ability to operate at high speeds. They can support both radial and axial loads in both directions.
Why Switch to HJDP?
At HJDP, we manufacture deep groove ball bearings that mirror the internal geometry and precision standards of premium global brands. We provide global wholesalers and distributors with a premium-tier quality alternative that significantly reduces procurement costs without compromising machinery performance.
Key Features
- Low Friction & High Speed: Optimized raceway finishing reduces friction torque, allowing for higher RPM.
- Superior Material: We use high-purity GCr15 chrome steel (SAE 52100) ensuring HRC 60-65 hardness.
- Silent Running: Advanced super-finishing technology ensures our bearings meet Z3 and Z4 noise levels, ideal for electric motors.
- Long-Lasting Performance: Precision-ground balls and race profiles lead to a service life equivalent to international premium standards.

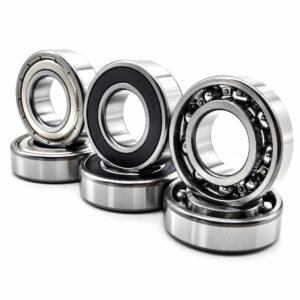

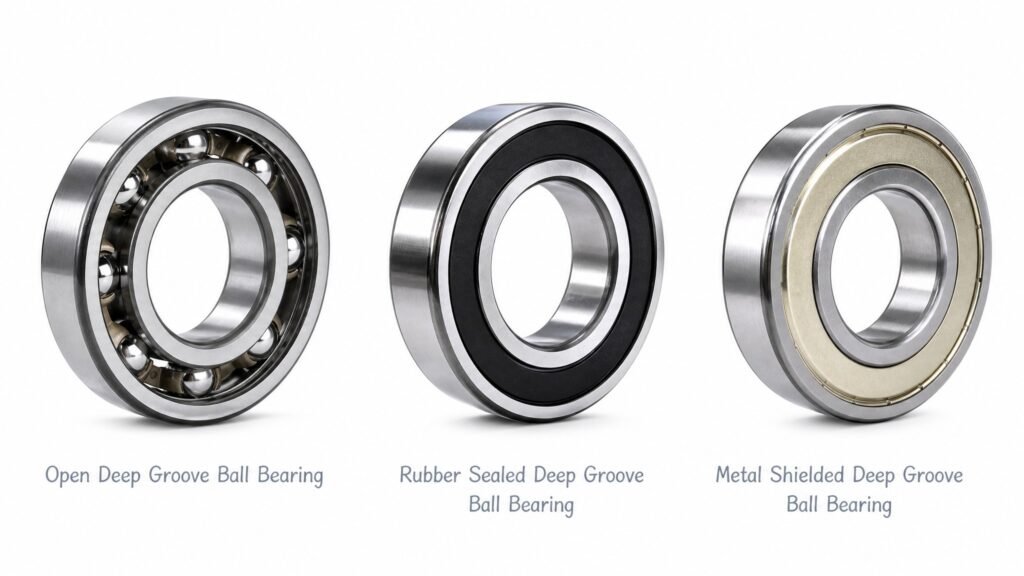

Structure & Sealing Options
- Open Type : Suitable for high-speed applications using oil or grease lubrication.
- ZZ (Metal Shields): Double-sided steel shields provide basic protection against dust while retaining grease.
- 2RS / DDU (Rubber Seals): High-quality NBR rubber seals provide the best protection against moisture and contaminants, equivalent to NSK DDU or SKF 2RS1.
Series & Cross-Reference
| Series | Type | Bore Range | International Alternative |
|---|---|---|---|
| 6000 Series | Extra Light | 10mm – 480mm | SKF 60.., NSK 60.., NTN 60.. |
| 6200 Series | Light | 10mm – 500mm | SKF 62.., NSK 62.., NTN 62.. |
| 6300 Series | Medium | 10mm – 500mm | SKF 63.., NSK 63.., NTN 63.. |
| 6800/6900 | Thin Section | 10mm – 400mm | SKF 618../619.. |
Industries & Applications
- Automotive Parts: Alternators, starters, and transmissions.
- Electric Motors: High-precision and silent-running requirements.
- Agricultural Machinery: Heavy-duty performance in dusty environments.
- Power Tools: Compact design with high-speed stability.
- Home Appliances: Air conditioners, washing machines, and fans.
Bearing Reference Data

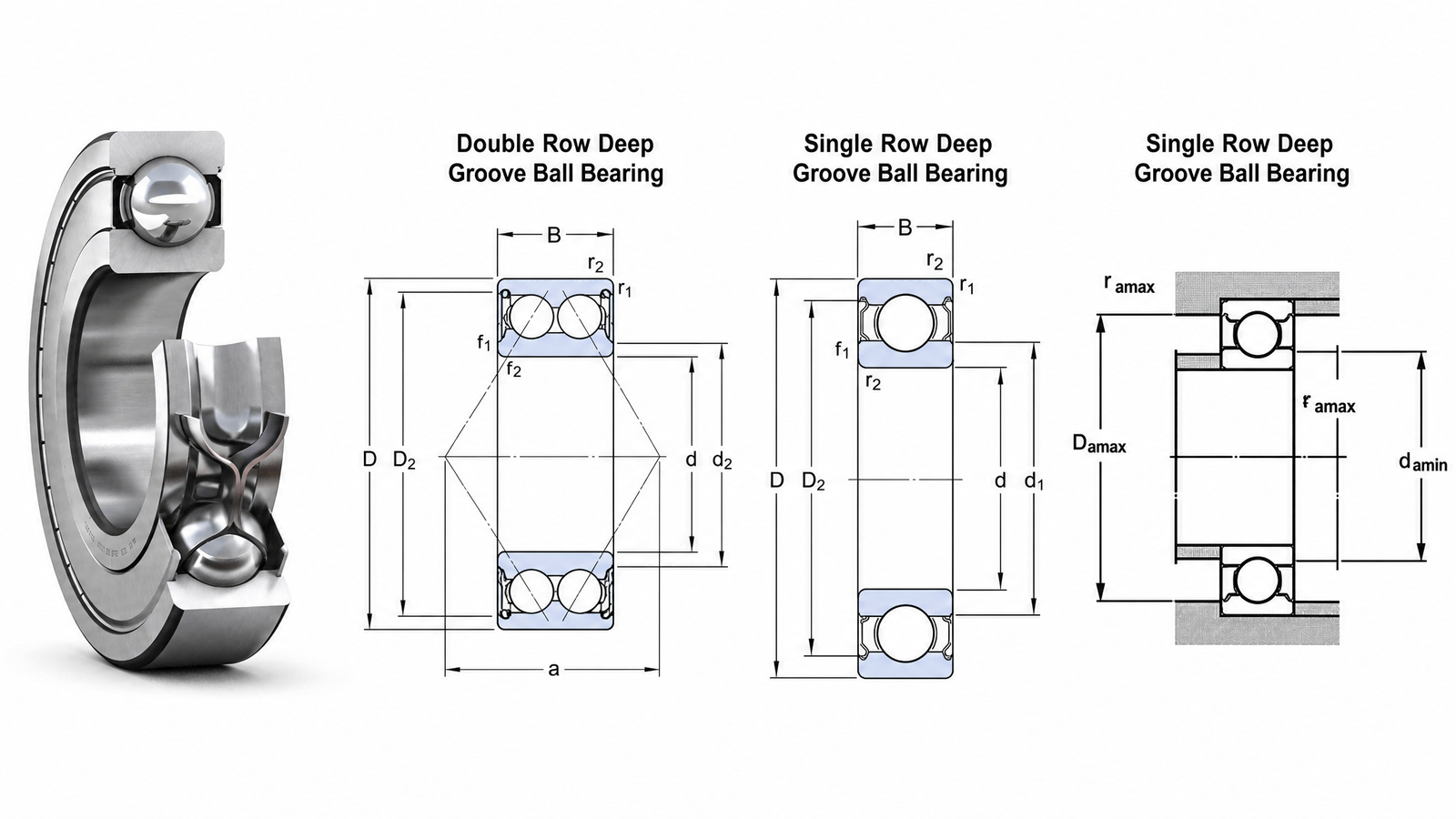

Common Deep Groove Ball Bearing Size Chart
Compare dimensions, basic load ratings, limiting speeds and approximate weight for 108 commonly used open-type deep groove ball bearings. Models are listed once by their current Chinese GB designation, with source-listed suffix variants shown beside each model.
Common suffix guide:
Z / 2Z (ZZ) metal shield(s)
RS / 2RS contact seal(s)
RZ / 2RZ low-friction seal(s)
C2 / C3 / C4 internal clearance
P5 / P6 precision class
N / NR snap-ring groove / groove with ring
TN / TN1 engineering-polymer cage
M / MA / MB machined brass cage variants
E reinforced design
Suffix meanings and available combinations can vary by manufacturer. Confirm the exact specification before ordering.
Showing 1–15 of 108 bearings
| Domestic New Model (GB) |
Available Suffix Variants source-listed options |
Domestic Former Model (GB) |
Bore d (mm) |
Outside Diameter D (mm) |
Width B (mm) |
Dynamic Load Rating Cr (kN) |
Static Load Rating Cor (kN) |
Grease Speed (r/min) |
Oil Speed (r/min) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6000 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN Special Structure: 2LZ, 2N, 2RSV, 2ZN, HV, LZ, N, RSZ, ZN Noise / Vibration: Z1, Z2, Z3 28 source catalog designation variants | 100 | 10 | 26 | 8 | 4.58 | 1.98 | 22,000 | 30,000 | 0.019 |
| 6001 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN Precision: P6 Special Structure: 2LZ, 2RSV, 2ZN, E, EN, HV, LZ, N, NR, RSZ, X1, YA, ZN Noise / Vibration: Z1, Z2, Z3 47 source catalog designation variants | 101 | 12 | 28 | 8 | 5.10 | 2.38 | 20,000 | 26,000 | 0.022 |
| 6002 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Precision: P6 Special Structure: 2LSZ, 2LZ, 2N, 2RSV, 2ZN, E, HV, LZ, N, NR, T, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 53 source catalog designation variants | 102 | 15 | 32 | 9 | 5.58 | 2.85 | 19,000 | 24,000 | 0.030 |
| 6003 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Clearance: C3 Cage / Material: TN1 Special Structure: 2LZ, 2RSV, 2Z3, 2ZN, 22, E, LZ, N, NR, P5450, RSN, T, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 44 source catalog designation variants | 103 | 17 | 35 | 10 | 6.00 | 3.25 | 17,000 | 21,000 | 0.040 |
| 6004 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Cage / Material: CS, Q1 Special Structure: 2LZ, 2RSV, 2ZN, D2/P53S1, E, HV, L1, LZ, N, NR, R, RSN, X1, YA, YA2, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 48 source catalog designation variants | 104 | 20 | 42 | 12 | 9.38 | 5.02 | 16,000 | 19,000 | 0.069 |
| 6005 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Clearance: C3 Cage / Material: Q1 Special Structure: 2LZ, 2RSV, 2ZN, E, HV, HVS1, LU, N, NR, RSN, WB1-Z, X2/C3YA4, YA, ZN, ZNR, ZV Noise / Vibration: Z1, Z2, Z3 45 source catalog designation variants | 105 | 25 | 47 | 12 | 10.1 | 5.85 | 15,000 | 18,000 | 0.080 |
| 6006 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Cage / Material: Q1 Special Structure: 2RSV, 2ZN, E, HV, N, NR, RSN, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 34 source catalog designation variants | 106 | 30 | 55 | 13 | 13.2 | 8.25 | 13,000 | 15,000 | 0.116 |
| 6007 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Clearance: C3 Cage / Material: TN Special Structure: 2RSV, 2ZN, E, N, NR, P52, RSN, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 35 source catalog designation variants | 107 | 35 | 62 | 14 | 15.9 | 10.3 | 11,000 | 13,000 | 0.155 |
| 6008 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Cage / Material: Q1 Special Structure: 2RSV, 2ZN, E, N, NR, RSN, SC, X2, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 33 source catalog designation variants | 108 | 40 | 68 | 15 | 17.0 | 11.8 | 9,000 | 11,000 | 0.185 |
| 6009 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Special Structure: 2RSV, 2RZN, 2ZN, E, HV/S1, N, NR, RSN, RZN, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 35 source catalog designation variants | 109 | 45 | 75 | 16 | 21.0 | 14.8 | 8,000 | 10,000 | 0.230 |
| 6010 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Special Structure: 2RSV, 2ZN, E, N, NR, RSN, X3-2RZ, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 34 source catalog designation variants | 110 | 50 | 80 | 16 | 22.0 | 16.2 | 7,000 | 9,000 | 0.250 |
| 6011 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Special Structure: 2ZN, N, NR, RSN, X2-ZWCTN1, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 28 source catalog designation variants | 111 | 55 | 90 | 18 | 30.2 | 21.8 | 7,000 | 8,500 | 0.362 |
| 6012 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Cage / Material: M Special Structure: E, N, NR, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 25 source catalog designation variants | 112 | 60 | 95 | 18 | 31.5 | 24.2 | 6,300 | 7,500 | 0.385 |
| 6013 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Precision: P5 Cage / Material: M Special Structure: E, HV, N, NR, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 28 source catalog designation variants | 113 | 65 | 100 | 18 | 32.0 | 24.8 | 6,000 | 7,000 | 0.410 |
| 6014 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Cage / Material: M Special Structure: 2Z, E, N, NR, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 27 source catalog designation variants | 114 | 70 | 110 | 20 | 38.5 | 30.5 | 5,000 | 6,700 | 0.575 |
| 6015 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Cage / Material: M Special Structure: E, N, NR, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 26 source catalog designation variants | 115 | 75 | 115 | 20 | 40.2 | 33.2 | 5,300 | 6,300 | 0.603 |
| 6200 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Special Structure: 2RLS, 2RSV, 2ZN, 7, 7-2RS, 7-2Z, 7-RS, 7-Z, E, N, P6T, RSN, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3, Z4 45 source catalog designation variants | 200 | 10 | 30 | 9 | 5.10 | 2.38 | 20,000 | 26,000 | 0.032 |
| 6201 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Clearance: C3 Special Structure: 2LZ, 2RLS, 2RLZ, 2RSV, 2ZN, 8, 8-2RS, 8-RS, 8-Z, E, LZ, N, NR, P6HV, P6T, RSN, ZN, ZNR Noise / Vibration: Z1, Z2, Z3, Z4 59 source catalog designation variants | 201 | 12 | 32 | 10 | 6.82 | 3.05 | 19,000 | 24,000 | 0.037 |
| 6202 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Clearance: C2, C3 Precision: P6 Cage / Material: CS Special Structure: 2LZ, 2RSV, 2ZN, 6, 6-2RS, 6-2Z, 6-RS, 6-Z, 8, 8-2RS, 8-2Z, 8-RS, 8-Z, 10, 10-2RS, 10-2Z, 10-RS, 10-Z, C2YA, E, F2/S0, HV, LSZ, LZ, MT, N, NR, P6T, RSN, S0, TS1, X1-2Z/C3S1, X2-2RZ/P5Z1LHT, X2WB-2Z, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3, Z4 82 source catalog designation variants | 202 | 15 | 35 | 11 | 7.65 | 3.72 | 18,000 | 22,000 | 0.045 |
| 6203 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Clearance: C3, C9 Precision: P63 Cage / Material: CS, Q1 Special Structure: 2LZ, 2RS(3/4), 2RSNR, 2RSV, 2RZLZ, 2ZN, 8, 8-2RS, 8-2Z, 8-RS, 8-Z, 10, 10-2RS, 10-2Z, 10-RS, 10-Z, C2YA, C3YA, C4S1, D2/P53S1, DV, DVV, E, LZ, N, NR, P6T, P6Z1, R2, RSN, V, VV, X2-FS, X2-RS, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3, Z4 82 source catalog designation variants | 203 | 17 | 40 | 12 | 9.58 | 4.78 | 16,000 | 20,000 | 0.065 |
| 6204 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C2, C3, C4 Precision: P6, P53 Cage / Material: CS, JD2, Q1, TN, TN1 Special Structure: 2LZ, 2RLS, 2RLZ, 2RS(3/4), 2RSV, 2RZN, 2ZN, 3/4, 12, 12-2RS, 12-2Z, 12-RS, 12-Z, C2YA, C3Z1, C3Z2, C4RT9, C9YB2, D2/C3YA5, D2/P53S1, E, HV, HVP6, LZ, N, NR, NT, P6T, R, RSN, RZN, WB1-Z, X1-2RS/YE, X2, YA, ZN, ZNR, ZV, ZZCM Noise / Vibration: Z1, Z2, Z3 109 source catalog designation variants | 204 | 20 | 47 | 14 | 12.8 | 6.65 | 14,000 | 18,000 | 0.106 |
| 6205 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4, C9 Precision: P6, P63, P69 Cage / Material: CS, JD2, Q1, TN, TN1 Special Structure: 2LZ, 2RSV, 2RZN, 2Z(1), 2ZN, 16, C3YB2, C3Z1, C4T9, D2/C3YA, D2/P53S1, E, MT, N, NR, P6RT, P53V2, P53Z2, R, RSN, RZN, X1TN1/HV, YA, YB2, ZN, ZNR, ZZCM Noise / Vibration: V2, Z1, Z2, Z3 84 source catalog designation variants | 205 | 25 | 52 | 15 | 14.0 | 7.85 | 13,000 | 15,000 | 0.128 |
| 6206 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4, C9 Precision: P5, P53 Cage / Material: CS, Q1 Special Structure: 2FS, 2RSV, 2RZN, 2ZN, E, HV, HVC2, N, NR, Q2/HNP53, R, RSN, RZN, WB1-FS, YA, ZN, ZNR, ZZCM Noise / Vibration: Z1, Z2, Z3 56 source catalog designation variants | 206 | 30 | 62 | 16 | 19.5 | 11.3 | 11,000 | 13,000 | 0.199 |
| 6207 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4 Precision: P6, P69 Cage / Material: CS, Q1 Special Structure: 2FS, 2RSN, 2RSN/S0, 2RSN/Z1S0, 2RSV, 2RZN, 2ZN, C3YB2, E, F2/P6S1, HV, N, NR, P69RT, R, RSN, RZN, SC, X1-2RZ, X1D2, X2-2RZ, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 66 source catalog designation variants | 207 | 35 | 72 | 17 | 25.7 | 15.4 | 9,200 | 11,000 | 0.288 |
| 6208 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4 Cage / Material: CS Special Structure: 2FS, 2RSNR/HAC4H, 2RSV, 2RZN, 2ZN, 8-2Z, E, N, NR, RSN, RZN, WB1-FS, YA, YA4, YA5, ZN, ZNR, ZZCM Noise / Vibration: Z1, Z2, Z3 51 source catalog designation variants | 208 | 40 | 80 | 18 | 29.5 | 18.0 | 8,000 | 10,000 | 0.368 |
| 6209 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4 Precision: P69 Cage / Material: CS, Q1, TN1 Special Structure: 2FS, 2RSV, 2RZN, 2ZN, C4S1, C9RT, E, F2, HV, N, NR, P54, RSN, RZN, YA, YA5, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 54 source catalog designation variants | 209 | 45 | 85 | 19 | 31.5 | 20.5 | 7,000 | 9,000 | 0.416 |
| 6210 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C4 Cage / Material: CS Special Structure: 2RSV, 2RZN, 2ZN, E, N, NR, RZN, YA, YA2/F40, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 40 source catalog designation variants | 210 | 50 | 90 | 20 | 35.0 | 23.2 | 6,700 | 8,500 | 0.463 |
| 6211 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C2 Special Structure: 2RZN, 2ZN, E, HV, HVP6, HVP62, N, NR, RSN, RZN, WB1-FS, WB-2Z, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 42 source catalog designation variants | 211 | 55 | 100 | 21 | 43.2 | 29.2 | 6,000 | 7,500 | 0.603 |
| 6212 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Special Structure: 2RZN, 2ZN, C3YA, E, N, NR, RSN, RZN, WB-2Z, WB-Z, YA, ZN, ZNB, ZNR Noise / Vibration: Z1, Z2, Z3 42 source catalog designation variants | 212 | 60 | 110 | 22 | 47.8 | 32.8 | 5,600 | 7,000 | 0.789 |
| 6213 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C4, C9 Special Structure: 2RZN, 2ZN, E, HGP5, N, NR, RZN, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 41 source catalog designation variants | 213 | 65 | 120 | 23 | 57.2 | 40.0 | 5,000 | 6,300 | 0.990 |
| 6214 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Special Structure: 2ZN, E, EN, N, NR, YA, ZN, ZNR, ZSC Noise / Vibration: Z1, Z2, Z3 34 source catalog designation variants | 214 | 70 | 125 | 24 | 60.8 | 45.0 | 4,800 | 6,000 | 1.084 |
| 6215 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Clearance: C9 Precision: P4, P69 Cage / Material: M Special Structure: E, HVP6, K, N, NR, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 33 source catalog designation variants | 215 | 75 | 130 | 25 | 66.0 | 49.5 | 4,500 | 5,600 | 1.171 |
| 6300 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Special Structure: 2LZ, 2RSV, 2SZ, 2ZN, E, N, NR, RSN, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 32 source catalog designation variants | 300 | 10 | 35 | 11 | 7.65 | 3.48 | 18,000 | 24,000 | 0.053 |
| 6301 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Special Structure: 2LSZ, 2LZ, 2RSV, 2ZN, DV, DVV, E, N, NR, RSN, V, VV, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 33 source catalog designation variants | 301 | 12 | 37 | 12 | 9.72 | 5.08 | 17,000 | 22,000 | 0.060 |
| 6302 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Special Structure: 2LSZ, 2LZ, 2RSV, 2ZN, DDU, DDU-BUR, DU, DU-BUR, E, N, NR, RSN, RSZ, V, VV, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 44 source catalog designation variants | 302 | 15 | 42 | 13 | 11.5 | 5.42 | 16,000 | 20,000 | 0.082 |
| 6303 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3 Precision: P53 Cage / Material: CS, Q1 Special Structure: 2LSZ, 2LZ, 2RSV, 2RZN, 2ZN, D2/P53S1, E, N, NR, R, RSN, RZN, X2, X2-FS, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 52 source catalog designation variants | 303 | 17 | 47 | 14 | 13.5 | 6.58 | 15,000 | 18,000 | 0.115 |
| 6304 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4, C5 Precision: P6, P53, P63 Cage / Material: CS, Q1 Special Structure: 2LSZ, 2LZ, 2RSN, 2RSV, 2RZN, 2ZN, CS14, D2, D2/P53S1, E, EN, F2/P6S0, HV, HVP6, N, NR, P53YA, R, RSN, RZN, RZNB, X2/S1, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 65 source catalog designation variants | 304 | 20 | 52 | 15 | 15.8 | 7.88 | 13,000 | 16,000 | 0.142 |
| 6305 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4 Precision: P5 Cage / Material: CS, Q1, TN, TN1 Special Structure: 2LSZ, 2RSV, 2RZN, 2ZN, B/R01, E, EN, N, NR, R, RSN, RZN, X1-2RZ, X1D2-2Z, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 57 source catalog designation variants | 305 | 25 | 62 | 17 | 20.6 | 11.3 | 11,000 | 13,000 | 0.232 |
| 6306 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4, C5 Precision: P4 Cage / Material: CS, M, Q1, TN, TN1 Special Structure: 2RN, 2RSV, 2RZN, 2ZN, E, N, NR, R, RSN, RZN, X1-2RZ, X3-1-2RZ1V/C3Y, X3-2RS, X3-2RSN, X3-2RZN, X3-ZNTN6/P69Y, X3-ZTN6/P69Y, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 63 source catalog designation variants | 306 | 30 | 72 | 19 | 26.7 | 15.0 | 6,600 | 12,000 | 0.346 |
| 6307 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4, C9 Precision: P69 Cage / Material: CS, TN Special Structure: 2RSV, 2RZN, 2ZN, E, N, NR, R, RSN, RZN, X1-2RSNR/HAC4H, X1-2RZ, YA, ZN, ZNR, ZNTN6/P69Y Noise / Vibration: Z1, Z2, Z3 51 source catalog designation variants | 307 | 35 | 80 | 21 | 33.4 | 19.3 | 8,500 | 10,000 | 0.457 |
| 6308 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4, C9 Precision: P4, P53 Cage / Material: CS, M, Q1, TN, TN1 Special Structure: 2RSN, 2RSV, 2RZN, 2ZN, HA, N, NR, RSN, RZN, X2-2Z, X2-2ZT/HV, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 61 source catalog designation variants | 308 | 40 | 90 | 23 | 40.8 | 24.0 | 7,000 | 8,500 | 0.639 |
| 6309 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3, C4, C9 Precision: P6, P69 Cage / Material: CS, M, Q1, TN1 Special Structure: 2RSV, 2RZN, 2ZN, E, EN, HDDU, HV, N, NR, RSN, RZN, X1-2RZ, YA, YB5, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 58 source catalog designation variants | 309 | 45 | 100 | 25 | 52.8 | 31.8 | 6,300 | 7,500 | 0.837 |
| 6310 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3 Cage / Material: CS, TN, TN1 Special Structure: 2RSV, 2RZN, 2ZN, E, EN, HQ, N, NR, P5Z, RSN, RZN, S1, X1, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 51 source catalog designation variants | 310 | 50 | 110 | 27 | 61.8 | 38.0 | 6,000 | 7,000 | 1.082 |
| 6311 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C3 Cage / Material: TN, TN1 Special Structure: 2RZN, 2ZN, E, N, NR, RSN, RZN, X1-2RS, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 39 source catalog designation variants | 311 | 55 | 120 | 29 | 71.5 | 44.8 | 5,600 | 6,700 | 1.367 |
| 6312 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C4 Precision: P63 Cage / Material: Q1, TN, TN1 Special Structure: 2RZN, 2ZN, E, HQ, N, NR, P64, RZN, YA, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 43 source catalog designation variants | 312 | 60 | 130 | 31 | 81.8 | 51.8 | 5,000 | 6,000 | 1.710 |
| 6313 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, Z, ZN, ZNR Clearance: C3 Cage / Material: M, TN Special Structure: 2RZN, 2ZN, E, N, NR, X1-2RS, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 36 source catalog designation variants | 313 | 65 | 140 | 33 | 93.8 | 60.5 | 4,500 | 5,300 | 2.100 |
| 6314 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C2, C3, C9 Special Structure: 2RZN, 2ZN, E, N, NR, RZN, YA6, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 35 source catalog designation variants | 314 | 70 | 150 | 35 | 105 | 68.0 | 4,300 | 5,000 | 2.550 |
| 6315 | Seals / Shields: 2LS, 2RS, 2RZ, 2RZN, 2Z (ZZ), 2ZN, LS, RS, RZ, RZN, Z, ZN, ZNR Clearance: C9 Special Structure: 2RZN, 2ZN, E, N, NR, RZN, ZN, ZNR Noise / Vibration: Z1, Z2, Z3 32 source catalog designation variants | 315 | 75 | 160 | 37 | 113 | 76.8 | 4,000 | 4,800 | 3.050 |
| 6403 | Seals / Shields: 2RS, 2Z (ZZ), RS, Z, ZN Special Structure: N, ZN 6 source catalog designation variants | 403 | 17 | 62 | 17 | 22.7 | 10.8 | 11,000 | 15,000 | 0.270 |
| 6404 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, Z, ZN Special Structure: HV, N, ZN 9 source catalog designation variants | 404 | 20 | 72 | 19 | 31.0 | 15.2 | 9,500 | 13,000 | 0.400 |
| 6405 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, Z, ZN Special Structure: N, ZN 8 source catalog designation variants | 405 | 25 | 80 | 21 | 36.1 | 19.4 | 9,100 | 11,000 | 0.530 |
| 6406 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, RZ, Z, ZN Cage / Material: TN1 Special Structure: E, N, YA, ZN Noise / Vibration: Z1, Z2 15 source catalog designation variants | 406 | 30 | 90 | 23 | 43.4 | 23.9 | 8,100 | 9,700 | 0.735 |
| 6407 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, RZ, Z, ZN Precision: P63 Special Structure: E, N, ZN Noise / Vibration: Z1, Z2 13 source catalog designation variants | 407 | 35 | 100 | 25 | 55.0 | 31.0 | 7,200 | 8,600 | 0.952 |
| 6408 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, RZ, Z, ZN Clearance: C3 Special Structure: E, N, S1, X2-2RZ, ZN Noise / Vibration: Z1, Z2 16 source catalog designation variants | 408 | 40 | 110 | 27 | 65.5 | 37.5 | 6,300 | 8,000 | 1.221 |
| 6409 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, RZ, Z, ZN Clearance: C3 Special Structure: N, YA4, ZN Noise / Vibration: Z1, Z2 13 source catalog designation variants | 409 | 45 | 120 | 29 | 77.5 | 45.5 | 5,600 | 7,000 | 1.520 |
| 6410 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, RZ, Z, ZN Special Structure: E, N, S1, ZN Noise / Vibration: Z1, Z2 13 source catalog designation variants | 410 | 50 | 130 | 31 | 922 | 55.2 | 5,300 | 6,300 | 1.855 |
| 6411 | Seals / Shields: 2RS, 2RZ, 2Z (ZZ), RS, RZ, Z, ZN Special Structure: N, ZN Noise / Vibration: Z1, Z2 10 source catalog designation variants | 411 | 55 | 140 | 33 | 100 | 62.5 | 4,800 | 6,000 | 2.316 |
| 6412 | Seals / Shields: 2RS, 2RZ, RS, RZ, Z, ZN Clearance: C3 Special Structure: E, N, ZN Noise / Vibration: Z1, Z2 12 source catalog designation variants | 412 | 60 | 150 | 35 | 109 | 70.0 | 4,500 | 5,600 | 2.811 |
| 6413 | Seals / Shields: ZN Special Structure: N, ZN 2 source catalog designation variants | 413 | 65 | 160 | 37 | 118 | 78.5 | 4,300 | 5,300 | 3.342 |
| 6414 | Seals / Shields: ZN Special Structure: N, ZN 2 source catalog designation variants | 414 | 70 | 180 | 42 | 140 | 99.5 | 3,800 | 4,500 | 4.896 |
| 6415 | Seals / Shields: ZN Special Structure: N, ZN 2 source catalog designation variants | 415 | 75 | 190 | 45 | 154 | 115 | 3,600 | 4,300 | 5.739 |
| 61800 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Clearance: C2, C3 Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, HV, N, RZTN, T, WC, X1-Z, X2, ZN, ZTN 23 source catalog designation variants | 1000800 | 10 | 19 | 5 | 1.80 | 0.93 | 28,000 | 36,000 | 0.005 |
| 61801 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, C3K, C9K, K, N, P6Z1, RZTN, ZN, ZTN 21 source catalog designation variants | 1000801 | 12 | 21 | 5 | 1.90 | 1.00 | 24,000 | 32,000 | 0.006 |
| 61802 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 21 source catalog designation variants | 1000802 | 15 | 24 | 5 | 2.10 | 1.30 | 22,000 | 30,000 | 0.007 |
| 61803 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 21 source catalog designation variants | 1000802 | 17 | 26 | 5 | 2.20 | 1.5 | 20,000 | 28,000 | 0.008 |
| 61804 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, P6YA, RZTN, ZN, ZNRTN, ZNTN, ZTN 22 source catalog designation variants | 1000804 | 20 | 32 | 7 | 3.50 | 2.20 | 18,000 | 24,000 | 0.018 |
| 61805 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, X1V, X2-WBV, ZN, ZNRTN, ZNTN, ZTN 23 source catalog designation variants | 1000805 | 25 | 37 | 7 | 4.3 | 2.90 | 16,000 | 20,000 | 0.022 |
| 61806 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 21 source catalog designation variants | 1000806 | 30 | 42 | 7 | 4.55 | 3.40 | 15,000 | 18,000 | 0.026 |
| 61807 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RZTN, 2ZTN, N, NRTN, NTN, ZN, ZNRTN, ZNTN, ZTN 19 source catalog designation variants | 1000807 | 35 | 47 | 7 | 4.75 | 3.85 | 13,000 | 19,000 | 0.030 |
| 61808 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, X2-WBV, ZN, ZNRTN, ZNTN, ZTN 22 source catalog designation variants | 1000808 | 40 | 52 | 7 | 4.95 | 4.20 | 12,000 | 14,000 | 0.033 |
| 61809 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, X2-WBV, ZN, ZNRTN, ZNTN, ZTN 22 source catalog designation variants | 1000809 | 45 | 58 | 7 | 6.40 | 5.60 | 9,000 | 12,000 | 0.030 |
| 61810 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RSV, 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, X2-WBV, ZN, ZNRTN, ZNTN, ZTN 22 source catalog designation variants | 1000810 | 50 | 65 | 7 | 6.6 | 6.1 | 8,500 | 10,000 | 0.043 |
| 61811 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 20 source catalog designation variants | 1000811 | 55 | 72 | 9 | 9.1 | 8.4 | 8,000 | 9,500 | 0.070 |
| 61812 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 20 source catalog designation variants | 1000812 | 60 | 78 | 10 | 9.1 | 8.7 | 7,000 | 8,500 | 0.093 |
| 61813 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 20 source catalog designation variants | 1000813 | 65 | 85 | 10 | 11.9 | 11.5 | 6,700 | 8,000 | 0.13 |
| 61814 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RZTN, 2ZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 20 source catalog designation variants | 1000814 | 70 | 90 | 10 | 12.1 | 11.9 | 6,300 | 7,500 | 0.138 |
| 61815 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Cage / Material: TN, TN1 Special Structure: 2RZTN, N, NRTN, NTN, RZTN, ZN, ZNRTN, ZNTN, ZTN 19 source catalog designation variants | 1000815 | 75 | 95 | 10 | 12.5 | 12.8 | 6,000 | 7,000 | 0.147 |
| 61900 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Clearance: C2, C3 Special Structure: 2RSV, N, NR, P5S2, T/HV, X1-2ZWBV/YB1, X2-2ZWBV/YAYB1, ZN, ZNR 19 source catalog designation variants | 1000900 | 10 | 22 | 6 | 2.70 | 1.30 | 25,000 | 32,000 | 0.010 |
| 61901 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: 2RSV, N, NR, ZN, ZNR 13 source catalog designation variants | 1000901 | 12 | 24 | 6 | 2.90 | 1.50 | 22,000 | 28,000 | 0.011 |
| 61902 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: 2RSV, N, NR, X2-ZSC, ZN, ZNR 14 source catalog designation variants | 1000902 | 15 | 28 | 7 | 4.30 | 2.30 | 20,000 | 26,000 | 0.017 |
| 61903 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Cage / Material: Q1 Special Structure: 2RSV, N, NR, ZN, ZNR, ZRS 16 source catalog designation variants | 1000903 | 17 | 30 | 7 | 4.60 | 2.6 | 19,000 | 24,000 | 0.018 |
| 61904 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Cage / Material: Q1 Special Structure: 2RSV, N, NR, ZN, ZNR, ZRS 15 source catalog designation variants | 1000904 | 20 | 37 | 9 | 6.40 | 3.70 | 17,000 | 22,000 | 0.036 |
| 61905 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: 2RSV, N, NR, ZN, ZNR 13 source catalog designation variants | 1000905 | 25 | 42 | 9 | 7.0 | 4.55 | 16,000 | 19,000 | 0.041 |
| 61906 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Clearance: C4 Cage / Material: TN1 Special Structure: 2RSV, N, NR, ZN, ZNR 15 source catalog designation variants | 1000906 | 30 | 47 | 9 | 7.25 | 5.00 | 14,000 | 17,000 | 0.045 |
| 61907 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: N, NR, ZN, ZNR 12 source catalog designation variants | 1000907 | 35 | 55 | 10 | 10.9 | 7.75 | 12,000 | 14,000 | 0.073 |
| 61908 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: 2RSV, N, NR, ZN, ZNR 13 source catalog designation variants | 1000908 | 40 | 62 | 12 | 13.7 | 9.95 | 11,000 | 13,000 | 0.112 |
| 61909 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), RS, RZ, Z, ZN, ZNR Special Structure: 2RSV, N, NR, ZN, ZNR 12 source catalog designation variants | 1000909 | 45 | 68 | 12 | 14.1 | 10.90 | 8,500 | 11,000 | 0.123 |
| 61910 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: 2RSV, N, NR, X3-2RZN/WB, ZN, ZNR, ZRS 16 source catalog designation variants | 1000910 | 50 | 72 | 12 | 14.5 | 11.7 | 8,000 | 9,500 | 0.122 |
| 61911 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: N, NR, ZN, ZNR, ZRS 14 source catalog designation variants | 1000911 | 55 | 80 | 13 | 15.9 | 13.2 | 7,500 | 9,000 | 0.170 |
| 61912 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN Special Structure: N, NR, ZN, ZRS 13 source catalog designation variants | 1000912 | 60 | 85 | 13 | 16.4 | 14.2 | 6,700 | 8,000 | 0.181 |
| 61913 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: N, NR, ZN, ZNR, ZRS 14 source catalog designation variants | 1000913 | 65 | 90 | 13 | 17.4 | 16.0 | 6,300 | 7,500 | 0.196 |
| 61914 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: N, NR, ZN, ZNR, ZRS 14 source catalog designation variants | 1000914 | 70 | 100 | 16 | 23.7 | 21.1 | 6,000 | 7,000 | 0.336 |
| 61915 | Seals / Shields: 2LS, 2RS, 2RZ, 2Z (ZZ), LS, RS, RZ, Z, ZN, ZNR Special Structure: N, NR, ZN, ZNR 12 source catalog designation variants | 1000915 | 75 | 105 | 16 | 24.3 | 22.5 | 5,600 | 6,700 | 0.355 |
| 16001 | Seals / Shields: 2RS, 2Z (ZZ) Cage / Material: Q1 Special Structure: 2RSV, NR 8 source catalog designation variants | 7000101 | 12 | 28 | 7 | 5.10 | 2.40 | 20,000 | 26,000 | 0.024 |
| 16002 | Seals / Shields: 2RS, 2Z (ZZ), RS, Z Cage / Material: Q1 Special Structure: 2RSV, C3S1T, NR, S1 10 source catalog designation variants | 7000102 | 15 | 32 | 8 | 5.60 | 2.80 | 19,000 | 24,000 | 0.025 |
| 16003 | Seals / Shields: 2RS, 2Z (ZZ), RS, Z Cage / Material: Q1 Special Structure: 2RSV, NR, X2, X2/C3S1T, YA 10 source catalog designation variants | 7000103 | 17 | 35 | 8 | 6.00 | 3.3 | 18,000 | 22,000 | 0.032 |
| 16004 | Seals / Shields: 2RS, 2Z (ZZ) Special Structure: 2RSV, NR, X1, X2, X2Q1 7 source catalog designation variants | 7000104 | 20 | 42 | 8 | 7.90 | 4.50 | 16,000 | 19,000 | 0.050 |
| 16005 | Seals / Shields: 2RS, 2Z (ZZ) Cage / Material: Q1 Special Structure: 2RSV, NR Noise / Vibration: Z1 6 source catalog designation variants | 7000105 | 25 | 47 | 8 | 8.85 | 5.60 | 15,000 | 18,000 | 0.060 |
| 16006 | Seals / Shields: 2RS, 2Z (ZZ) Clearance: C9 Cage / Material: Q1 Special Structure: 2RSV, NR Noise / Vibration: Z1 8 source catalog designation variants | 7000106 | 30 | 55 | 9 | 11.2 | 7.35 | 13,000 | 15,000 | 0.085 |
| 16007 | Seals / Shields: 2RS, 2Z (ZZ) Special Structure: 2RSV, NR Noise / Vibration: Z1 5 source catalog designation variants | 7000107 | 35 | 62 | 9 | 12.2 | 8.85 | 11,000 | 13,000 | 0.110 |
| 16008 | Seals / Shields: 2RS, 2Z (ZZ) Precision: P6 Cage / Material: Q1 Special Structure: 2RSV, NR, YA Noise / Vibration: Z1 7 source catalog designation variants | 7000108 | 40 | 68 | 9 | 12.6 | 9.60 | 9,000 | 11,000 | 0.125 |
| 16009 | Seals / Shields: 2RS, 2Z (ZZ) Special Structure: 2RSV, NR, X2 Noise / Vibration: Z1 6 source catalog designation variants | 7000109 | 45 | 75 | 10 | 15.6 | 12.2 | 8,000 | 10,000 | 0.155 |
| 16010 | Seals / Shields: 2RS, 2Z (ZZ) Clearance: C2, C9 Special Structure: 2RSV, NR, P59, P59Z1, X2 9 source catalog designation variants | 7000110 | 50 | 80 | 10 | 16.1 | 13.1 | 8,000 | 9,500 | 0.166 |
| 16011 | Special Structure: HVP5S1 1 source catalog designation variants | 7000111 | 55 | 90 | 11 | 19.4 | 16.2 | 7,000 | 8,500 | 0.207 |
| 16012 | No suffix variant listed in the source catalog. | 7000112 | 60 | 95 | 11 | 19.9 | 17.5 | 6,300 | 7,500 | 0.224 |
| 16013 | Cage / Material: M 2 source catalog designation variants | 7000113 | 65 | 100 | 11 | 20.5 | 18.6 | 6,000 | 7,000 | 0.241 |
| 16014 | No suffix variant listed in the source catalog. | 7000114 | 70 | 110 | 13 | 27.9 | 25.0 | 5,600 | 6,700 | 0.386 |
| 16015 | Cage / Material: M 1 source catalog designation variants | 7000115 | 75 | 115 | 13 | 28.7 | 26.8 | 5,300 | 6,300 | 0.411 |
