# Water Ingress and Seal Failure in Automotive Wheel Hub Bearings

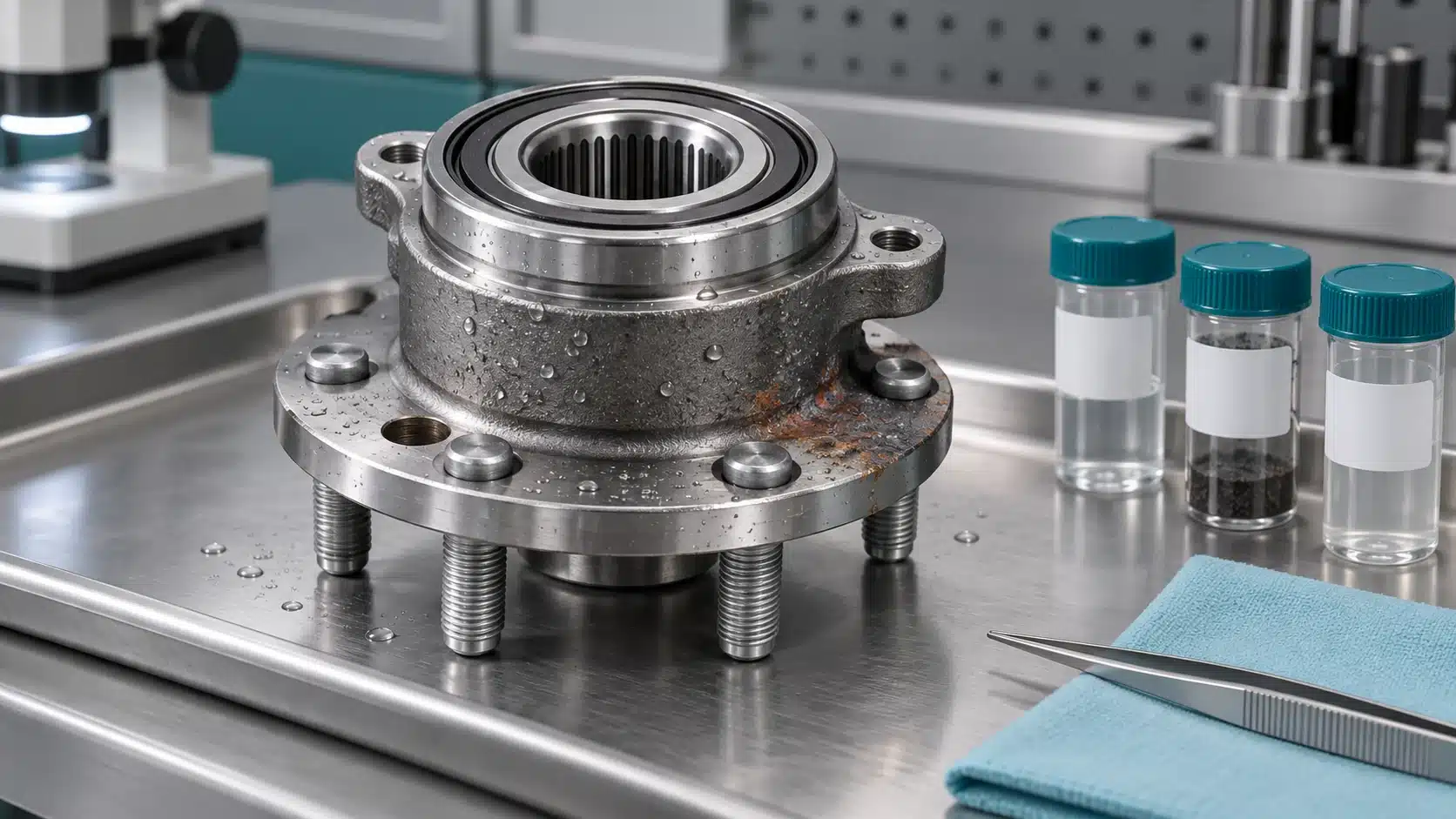

Wheel bearing water ingress occurs when water or a water-based contaminant reaches surfaces, grease, or electrical elements that should remain protected in service. The resulting corrosion can roughen rolling contacts, damage seals, change lubricant behavior, create noise and heat, or disrupt an ABS encoder or sensor. Yet rust on a returned hub does not automatically prove that the bearing seal was defective.

Water can enter through a damaged seal, an incorrect mating interface, a connector path, a missing cap, installation damage, prolonged immersion, aggressive washing, storage condensation, or punctured export packaging. A reliable investigation identifies the entry path and timeline instead of treating every corrosion mark as the same failure.

Why Water Is Harmful to a Wheel Hub Bearing

Rolling bearings rely on clean surfaces, controlled internal geometry, and an appropriate lubricant film. Water can interfere in several ways:

• initiate corrosion on rings, rolling elements, cages, flanges, studs, or splines;
• reduce lubricant film performance or alter grease consistency;
• carry dissolved salts and solid particles into the contact zone;
• promote abrasive or fatigue damage after corrosion pits form;
• damage electrical contacts or contaminate magnetic encoder surfaces;
• freeze in cold conditions and stress seals or cavities;
• create staining that obscures the original damage sequence.

SKF’s bearing-damage reference lists water ingress among environmental causes associated with bearing damage, alongside solid contamination, temperature, lubrication, mounting, storage, and transport factors. Because multiple factors interact, corrosion should be interpreted with the complete product and vehicle context.

Map Every Possible Ingress Path

A hub system contains several interfaces. The internal bearing seal is only one of them.

Do not assume that a visible external rust patch is connected to the internal rolling contacts. Trace the physical path from the environment toward the damaged region.

Seal Function in a Hub Unit

A wheel hub seal must retain lubricant and limit contaminant entry while accommodating rotation, temperature, misalignment, surface variation, and pressure changes. Modern hub units may use multiple sealing lips, shields, slingers, labyrinth features, or an integrated magnetic encoder.

Seal performance depends on a system:

• lip material and geometry;
• counterface diameter, finish, hardness, and runout;
• interference, compression, and installed position;
• grease compatibility;
• shaft and housing alignment;
• temperature and rotational speed;
• pressure and exposure;
• assembly cleanliness and handling;
• neighboring shields, caps, and drainage.

A conforming seal installed against a damaged or corroded counterface may leak. Conversely, a good vehicle interface cannot compensate for a cut, folded, incorrectly positioned, or incompatible seal.

How Installation Can Create an Ingress Path

Direct seal contact

Tools, press adapters, sharp packaging edges, and dirty gloves can cut or deform a lip. Do not lift or support a hub by a seal or encoder surface. Protective caps should remain in place until the defined assembly step.

Crooked pressing or incomplete seating

A tilted bearing can damage a seal, distort a ring, or leave a gap at an interface. Press force should follow the correct structural load path, and the final seating condition should be verified.

Damaged mating surfaces

Rust, burrs, old sealant, scratches, and impact marks can create channels. Clean and inspect the knuckle, axle, and pilot according to the vehicle procedure. Removing excessive material to make installation easier can also destroy the intended fit or sealing land.

Incorrect hardware or clamp

The wrong axle nut, reused one-time hardware, damaged threads, or incorrect clamp can permit relative movement. Movement can wear a sealing interface or disturb the intended geometry. Use the vehicle-specific fastener and torque procedure.

Sensor cable and connector handling

A connector that is not fully locked can admit water. A cable pulled tight or routed against a rotating or hot component can later expose conductors. Inspect pins, seals, latches, clips, and routing—not only the bearing seal.

Road Salt, Floodwater, and Pressure Washing

The type and route of exposure influence the evidence.

Road splash and salt

Road water contains dirt and, in some regions, deicing salts. Salt can accelerate corrosion and remain as deposits after water evaporates. Analyze deposit location and chemistry where the case justifies it. A salt-rich residue inside a protected cavity supports environmental entry, but the entry mechanism still requires investigation.

Floodwater or deep immersion

Immersion can expose seals and connectors to conditions beyond ordinary splash. Water may also enter adjacent systems and later migrate. Record water depth, duration, vehicle movement, contaminants, and whether the hub was hot before immersion. Do not promise continued serviceability from an external visual inspection alone.

High-pressure washing

A concentrated jet directed at seals, caps, or connectors can challenge interfaces differently from road spray. For warranty triage, record nozzle distance, direction, pressure if known, chemicals, and whether washing occurred while components were hot. The purpose is to reconstruct exposure, not to assign blame without evidence.

Storage and Packaging Moisture

Corrosion can begin before installation. A dry-looking carton may have experienced humidity cycling, container condensation, wet pallets, or a punctured barrier. If a cold part is moved into warm humid air and sealed immediately, condensation can be trapped inside.

Inspect:

• outer and inner cartons for water lines, softening, stains, and odor;
• primary bags for holes, stretched seams, and closure integrity;
• VCI or barrier material identity and shelf condition;
• desiccant type, placement, and saturation indicator where used;
• rust-preventive coverage and compatibility;
• pallet overhang, container roof/door position, and shipment records;
• corrosion distribution across units in the same case or pallet;
• retained stock from the same lot and route.

The wheel hub assembly export-packaging guide explains how to control corrosion and transit hazards as one validated system.

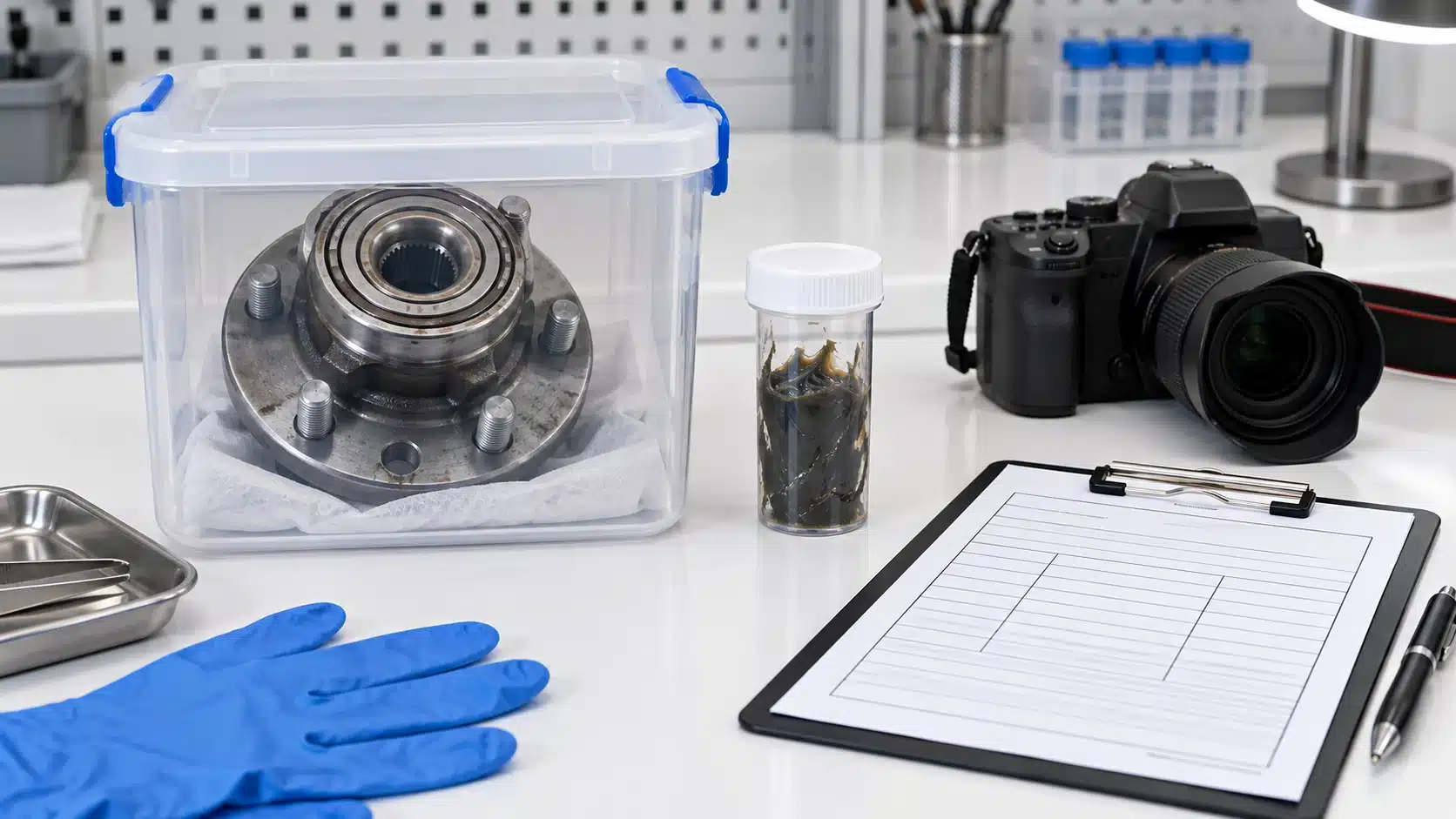

Preserving a Returned Hub for Water-Ingress Analysis

Do not wash, oil, dry with heat, wire-brush, or disassemble the return before documenting its condition. Each action can remove soluble salts, move particles, alter grease, or create new scratches.

Use this receiving sequence:

1. photograph unopened packaging and labels;
2. record visible moisture and package damage;
3. open in a clean area and photograph every layer;
4. photograph the hub from fixed orientations;
5. identify corrosion, deposits, grease, and water tracks;
6. protect loose deposits and collect samples under a plan;
7. inspect seal, encoder, connector, spline, cap, and interfaces;
8. store the return in a way that prevents further corrosion without contaminating evidence;
9. authorize destructive opening only after the test plan is approved.

For significant cases, retain control samples of unused product, packaging, water or deposit samples, and process materials.

Corrosion Pattern and Evidence Matrix

Corrosion may progress after removal if the part remains wet. The received timestamp and storage conditions therefore matter.

Inspecting the Seal and Counterface

Examine the seal before cutting it. Record orientation, seating depth, waviness, tears, nicks, hardening, swelling, abrasion, displaced springs where applicable, and debris accumulation. Inspect the counterface for grooves, runout, corrosion, burrs, and incorrect geometry.

After documentation, a controlled section may reveal the internal path. Use microscopy to distinguish cutting, abrasion, thermal damage, material cracking, and secondary disassembly damage. If material compatibility is suspected, compare the seal material, grease, cleaner, rust preventive, and exposure chemicals with released specifications.

The fact that a lip is damaged after severe bearing destruction does not prove the lip initiated the event. Establish sequence where possible.

Grease and Contaminant Analysis

Grease appearance can guide testing, but color alone is not definitive. Different approved greases have different colors, and heat or wear debris changes appearance. Useful methods may include water-content testing, elemental analysis, infrared spectroscopy, particle examination, and comparison with unused reference grease.

Define the question before sampling:

• Is water present above the product requirement?
• Are chlorides or other salts present?
• Does the grease match the approved type?
• Are wear particles consistent with corrosion or another mode?
• Is a foreign cleaner, oil, or rust preventive present?
• Does distribution across the bearing indicate an entry direction?

Record sample location and prevent cross-contamination from tools and containers.

Corrective Actions by Cause Family

Corrective action should target the verified cause. Adding more grease will not correct a torn connector seal; stronger packaging will not correct a damaged vehicle counterface.

Supplier and Distributor Prevention Checklist

• define seal and counterface CTQs on controlled drawings;
• verify grease identity, fill, cleanliness, and compatibility;
• protect seal and encoder surfaces through assembly and packing;
• inspect seating and damage with objective criteria;
• link lots to materials, assembly, tests, packaging, and shipment;
• validate corrosion protection for the intended route and storage;
• include connectors, caps, and hardware in kit controls;
• publish application-specific fitment, not appearance-based matches;
• provide installation precautions without inventing universal torque values;
• retain samples and records for the warranty period;
• trend claims by lot, application, route, installer, and confirmed mode;
• require change notification for seal, grease, coating, packaging, and sub-suppliers.

Frequently Asked Questions

Does rust prove a wheel hub seal defect?

No. Rust proves corrosion occurred. The investigation must identify timing, location, exposure, and the physical entry path.

Can a wheel bearing be reused after flood exposure?

That decision is vehicle- and product-specific and should follow qualified service guidance. External appearance alone cannot verify the internal bearing, grease, seal, and sensor condition.

Should a noisy corroded hub be spun repeatedly for diagnosis?

Minimize unnecessary operation before evidence is preserved. Rotation can redistribute contaminated grease and extend secondary damage.

Can packaging cause internal corrosion?

Yes. Trapped moisture, inadequate barrier, puncture, wet cartons, condensation, and insufficient corrosion protection can contribute. Prove the connection through package and lot evidence.

What should be sent with a water-ingress claim?

Send the uncleaned hub, packaging, hardware, vehicle and application data, installation record, exposure history, diagnostic codes, photographs, and lot/shipment information.

Final Takeaway

Effective wheel bearing water ingress analysis follows the water. Map every seal, cap, mating surface, connector, storage, and packaging path; preserve deposits and grease; inspect the seal system; compare vehicle and lot evidence; and apply corrective action only to the supported cause.

Jinan Huayuan Auto Bearing can review a case when the distributor provides complete product identity, application, exposure and installation history, packaging, photographs, diagnostic information, and the uncleaned return. Results remain conditional on product-specific specifications and available evidence.
