# Gen 1, Gen 2, and Gen 3 Wheel Hub Bearings Explained for Parts Buyers

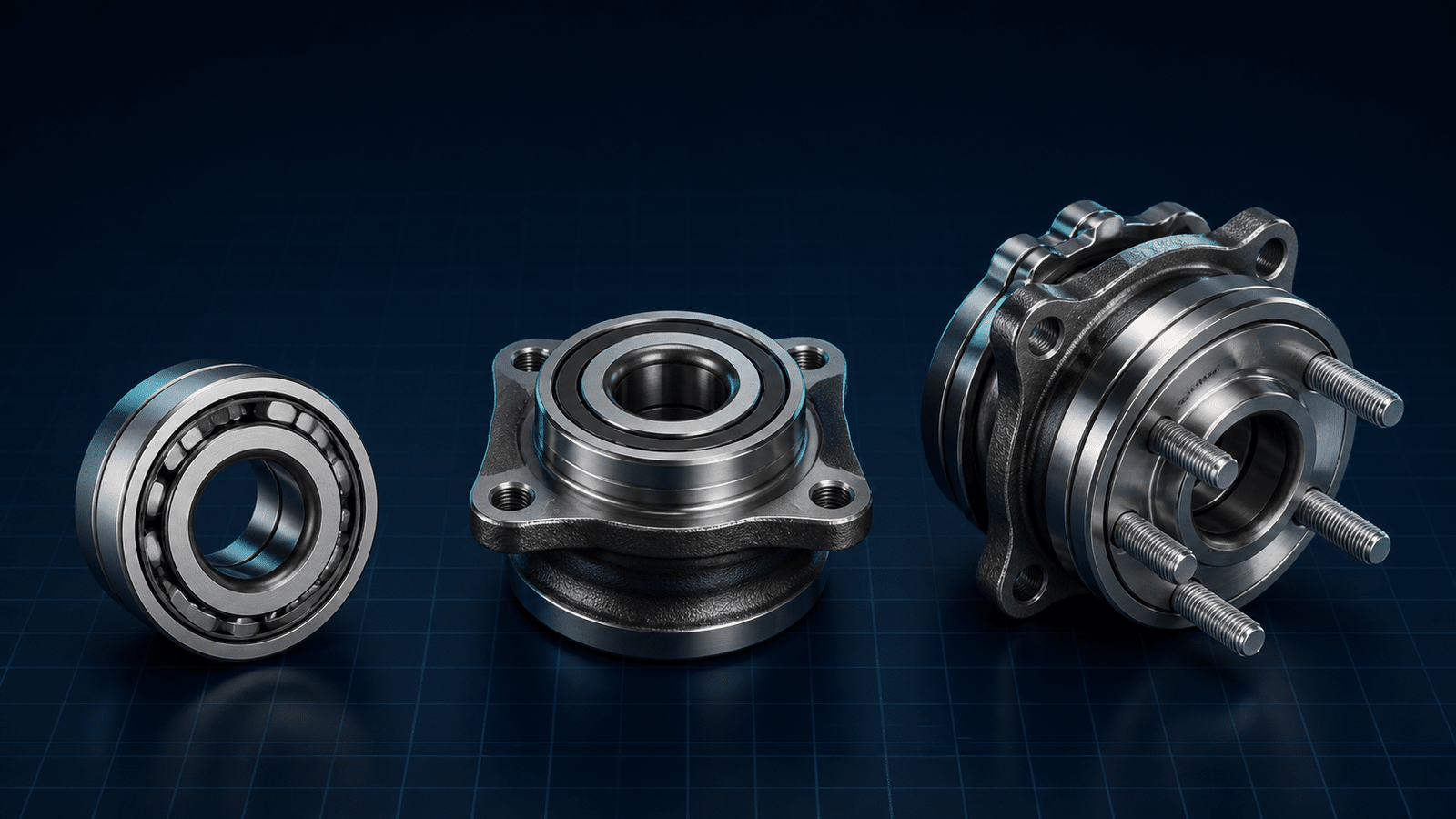

Gen 1, Gen 2, and Gen 3 wheel hub bearings describe progressively different levels of integration between the bearing and the wheel-end mounting interfaces. A typical Gen 1 unit is a compact double-row bearing without an integral mounting flange. Gen 2 adds an integral flange to one ring. Gen 3 generally integrates both a wheel/brake attachment flange and a suspension-side mounting flange. The generation label helps a buyer understand the architecture, but it never replaces OE-number, vehicle, dimensional, drivetrain, axle-position, and ABS validation.
This distinction matters commercially. The higher the integration level, the more catalog fields, manufacturing processes, sensor functions, packaging protections, and warranty evidence are concentrated in one SKU. A buyer who understands the generation can request better data, compare quotations more accurately, and prevent a visually similar but incompatible part from entering the catalog.
Wheel Hub Bearing Generations at a Glance
| Feature | Gen 1 | Gen 2 | Gen 3 |
|---|---|---|---|
| Typical bearing structure | Compact double-row bearing | Double-row bearing with one integral flange | Unitized bearing with wheel-side and suspension-side flanges |
| Wheel-side flange | Separate component in the wheel end | Integrated in some configurations | Integrated |
| Suspension-side flange | Usually separate | Depends on architecture | Integrated |
| Typical installation style | Pressed into a hub or knuckle according to application | Pressed or mounted through the integrated flange | Commonly bolted to the knuckle as a unit |
| ABS provision | May have magnetic encoder in a seal | May include encoder or sensor provision | Frequently integrates encoder and sometimes sensor/cable |
| Main catalog risk | Bearing size, seal side, encoder side, application | Flange geometry, rotating ring, bolt pattern, ABS | Mounting flange, studs, spline, offset, connector, axle and drivetrain |
| Commercial package | Bearing or repair kit | Bearing unit or partial assembly | Complete hub assembly or kit |
These are common patterns. Bearing manufacturers publish additional variants, including ball and tapered-roller types, driven and non-driven configurations, and special Gen 2 architectures. The approved drawing and application file always take precedence over a simplified generation table.
What “Generation” Actually Means
Generation is a shorthand for wheel-end integration. It is not a universal performance grade, quality class, or chronological statement that automatically makes a later generation “better.”
SKF’s hub-bearing literature describes Generation 1 as a double-row wheel-end bearing without an integral flange, Generation 2 as a unit with a tough flanged ring, and Generation 3 as a unit with another flange for attachment to the suspension. NTN’s catalog classifies hub bearings by ball or roller construction, generation, and driven or non-driven application.
The vehicle designer selects an architecture for packaging, assembly, rigidity, sensor integration, mass, service strategy, and cost. The aftermarket must reproduce the specified interface. A Gen 1 bearing cannot generally be substituted with a Gen 3 assembly, and a Gen 3 unit cannot be reduced to a Gen 1 part without redesigning the surrounding wheel end.
For buyers, “Gen 1/2/3” should therefore answer one question: how much of the wheel-end interface is integrated into the supplied part?
Gen 1 Wheel Hub Bearings
Typical Construction
A Gen 1 hub bearing is commonly a sealed double-row angular-contact ball bearing. Some applications use compact tapered-roller arrangements. It typically contains inner and outer rings, two rows of rolling elements, cages, lubricant, and seals. It does not normally incorporate the main wheel-mounting flange.
Because the surrounding hub and knuckle perform more of the mounting function, the bearing envelope may look simpler. Identification is not simple. Two bearings with similar dimensions can differ in internal design, seal configuration, encoder provision, clearance, or application.
Driven and Non-Driven Applications
Driven-wheel designs must accommodate the axle or drive-shaft interface. Non-driven designs do not have the same torque-transmission requirement. NTN’s hub-bearing classification explicitly distinguishes driven and non-driven arrangements. A catalog should preserve that distinction rather than listing one broad “front bearing” or “rear bearing” application.
Gen 1 Data Checklist
Before quoting or approving a Gen 1 item, confirm:
- Bore diameter
- Outside diameter
- Overall width
- Ball or tapered-roller construction
- Seal type on each side
- Magnetic encoder present or absent
- Encoder side and orientation
- Driven or non-driven wheel
- Front or rear axle
- Retaining-ring requirements
- Axle nut, seals, and hardware required for the repair kit
- Approved press and mounting instructions for the application
Common Gen 1 Purchasing Errors
The most frequent errors are dimensional matches made without checking encoder orientation, kit contents, or vehicle qualifiers. Another risk is a quotation that lists a bearing-only price when the distributor expects a repair kit. The solution is to define the commercial bill of materials separately from the bearing number.
Gen 2 Wheel Hub Bearings
Typical Construction
A Gen 2 hub unit integrates a flange with one bearing ring. SKF describes common Gen 2 hub assemblies as double-row bearings with a flanged outer ring that can contain threaded holes or studs and a pilot for wheel and brake mounting. Other configurations exist, including architectures for driven and non-driven wheels and variations in which ring rotates.
The integrated flange means the supplier controls more critical geometry. Raceway accuracy must coexist with flange strength, mounting accuracy, and runout requirements. The buyer must therefore review both bearing-related and hub-related evidence.
Gen 2 Data Checklist
In addition to the Gen 1 fields, request:
- Flange outside diameter
- Bolt-circle or pitch-circle diameter
- Number and size of holes or studs
- Pilot/spigot diameter
- Flange offset and mounting-face geometry
- Rotating-ring architecture
- Spline data for driven designs
- Brake and wheel interface information
- ABS sensor port, encoder, or integrated sensor details
Gen 2 Special and Variant Naming
Supplier catalogs may use labels such as Gen 2, Gen 2.1, Gen 2 special, HBU2, or HBU2R. These labels are useful only within their documented context. Never map two products solely because both are called “Gen 2.”
When migrating supplier data into a buyer’s catalog, retain the supplier architecture label as a reference field, but use controlled application and dimensional data as the release criteria.
Gen 3 Wheel Hub Bearings and Assemblies
Typical Construction
A Gen 3 unit generally adds the suspension-side mounting flange to the wheel-side flange and bearing. The assembly may include wheel studs, threaded mounting holes, an encoder ring, or a wheel-speed sensor and cable.
This unitization can simplify vehicle and service assembly because preload and more of the wheel-end interfaces are managed within the supplied unit. NTN’s technical history describes the evolution toward higher integration and improved assembly characteristics. That convenience increases the consequence of a catalog or manufacturing error.
Gen 3 Data Checklist
For every proposed Gen 3 SKU, verify:
- Primary and superseded OE numbers
- Vehicle make, model, chassis/platform, market, and production range
- Engine/transmission qualifier where relevant
- FWD, RWD, AWD, or 4WD configuration
- Front or rear axle and left/right restriction
- Wheel-stud quantity and thread
- Wheel bolt pattern
- Wheel/brake pilot diameter
- Knuckle-side mounting-hole pattern and threads
- Spline count and critical spline dimensions
- Overall height and flange offset
- Encoder technology and orientation
- Sensor included or separate
- Connector, cable length, brackets, and routing features
- Included mounting bolts, axle nut, seals, or other hardware
Why Visual Matching Fails
Many Gen 3 units share a recognizable silhouette: a circular wheel flange, studs, a central bore or spline, and a rear mounting flange. That visual similarity can hide decisive differences in offset, pilot, hole spacing, spline, sensor connector, or production-year application.
Product photos are useful for screening. They are not sufficient evidence for interchange approval.
Ball-Type vs Roller-Type Hub Bearings
Generation does not specify the rolling element. NTN publishes ball-type Gen 1, Gen 2, and Gen 3 configurations and roller-type Gen 1 and Gen 2 configurations. The selected construction reflects the vehicle’s design and load requirements.
A buyer should not convert a ball-bearing application to a tapered-roller design—or the reverse—because a catalog keyword appears similar. The approved OE reference, internal geometry, preload strategy, mounting system, and validation evidence must support the configuration.
The purchasing file should include a “rolling element” field and, where needed, a controlled construction code. This helps separate parts that might otherwise share broad dimensions or marketing descriptions.
ABS Encoder and Sensor Integration Across Generations
Wheel-speed information may be produced by an encoder integrated into a bearing seal and detected by a separate sensor. Some later hub assemblies integrate additional sensor components and wiring. SKF’s mounting resources warn about the position of the magnetic impulse ring across multiple hub-bearing generations, demonstrating that encoder orientation is not only a Gen 3 issue.
For procurement and quality control, define:
- Encoder present: yes/no
- Encoder side
- Encoder material or technology where specified
- Sensor included: yes/no
- Sensor connector and cable details
- Handling and packaging restrictions
- Functional test method and approved acceptance criteria
Never copy a pole count, air gap, electrical limit, or test threshold from a different application. These values must come from the approved drawing, customer specification, or validated product plan.
How Generation Changes the Manufacturing Audit
The audit scope should expand with the integration level.
Gen 1 Audit Focus
- Ring material and traceability
- Heat treatment
- Raceway grinding and superfinishing
- Internal clearance or preload control
- Seal and grease management
- Noise, vibration, dimensional, and encoder checks
Gen 2 Additional Focus
- Flange material and heat-treatment transition
- Flange machining accuracy
- Bolt-hole or stud control
- Pilot and mounting-face runout
- Relationship between raceway and flange datums
Gen 3 Additional Focus
- Both flange interfaces
- Knuckle-side mounting geometry
- Stud and thread installation
- Spline broaching or forming
- Sensor and cable assembly where supplied
- Functional ABS checks
- Assembly-level traceability
- Packaging protection for studs, connector, flange, and encoder
A current quality-system certificate can support supplier qualification, but it does not replace part-specific evidence. Review the scope, manufacturing site, product, process, drawing, control plan, inspection method, traceability, sample results, and change-control commitment.
Packaging Requirements by Generation
Gen 1
Protect seals and encoder surfaces, control corrosion, and prevent the bearing from moving inside the box. Kit hardware should be separated so it cannot damage a seal.
Gen 2
Protect the flange face, studs or threads, pilot, and encoder. Prevent side impact that can reach the bearing through the integrated flange.
Gen 3
Use support that immobilizes the heavier assembly without loading the sensor, cable, studs, or encoder area. Protect connectors and cable clips. Ensure the carton label identifies the exact sensor and hardware variant.
Export packaging should be validated for the actual distribution route, stacking, humidity, and handling conditions. A generic “strong carton” statement is not a packaging specification.
A Practical Generation-Based RFQ Template
Send the following information with a wheel-hub inquiry:
- Buyer part number and OE reference
- Vehicle application with market, production date, drivetrain, and axle
- Required generation or physical architecture, if confirmed
- Bearing, unit, assembly, or kit requirement
- Critical dimensions and drawing revision
- Rolling-element type
- Driven/non-driven configuration
- Flange, bolt pattern, pilot, and spline data
- ABS encoder and sensor requirement
- Included hardware
- Label, barcode, and private-label requirement
- Inspection and sample-approval requirement
- Traceability and change-notification requirement
- Annual volume, order pattern, and destination
If the generation is not known, do not guess. Send the OE number, full application, photographs, and dimensions and ask the supplier to return a proposed classification with supporting evidence.
Frequently Asked Questions
Is Gen 3 always better than Gen 1?
No. Gen 3 is more integrated, not universally better. The correct generation is the one engineered for the application.
Can the generation be identified from the part name?
Not reliably. Names vary across catalogs. Use the physical architecture, OE record, dimensions, and supplier drawing.
Does Gen 2 always have wheel studs?
No. Gen 2 configurations vary. Confirm whether the flange has studs, threaded holes, plain holes, or another interface.
Does every Gen 3 unit contain a wheel-speed sensor?
No. A unit may contain an encoder while using a separate vehicle-mounted sensor, may include a sensor and cable, or may have no ABS provision. Verify the exact application.
Are Gen 1 bearings always pressed into the knuckle?
Pressing and mounting depend on the application. Follow the vehicle and component manufacturer’s instructions; do not generalize an installation method from the generation label.
Why should a buyer record driven and non-driven configuration?
The configuration changes the axle interface and bearing architecture. It is a core fitment field, not a marketing detail.
Conclusion
Gen 1, Gen 2, and Gen 3 are useful structural categories for automotive wheel hub bearings. They tell the buyer how much of the wheel-end mounting system is integrated into the supplied part. They do not confirm fitment, quality, or interchange by themselves.
Build the purchasing decision on a controlled application file: OE reference, market, vehicle, production date, drivetrain, axle, driven status, dimensions, flange geometry, spline, ABS configuration, kit contents, and approved sample evidence. Then use the generation label to organize the catalog, audit plan, inspection scope, and packaging specification.
JNHJDP’s catalog separates wheel hub bearings from wheel hub assemblies. For a technical match, submit the OE list, application fields, drawing, photos, and required package through the contact page.
