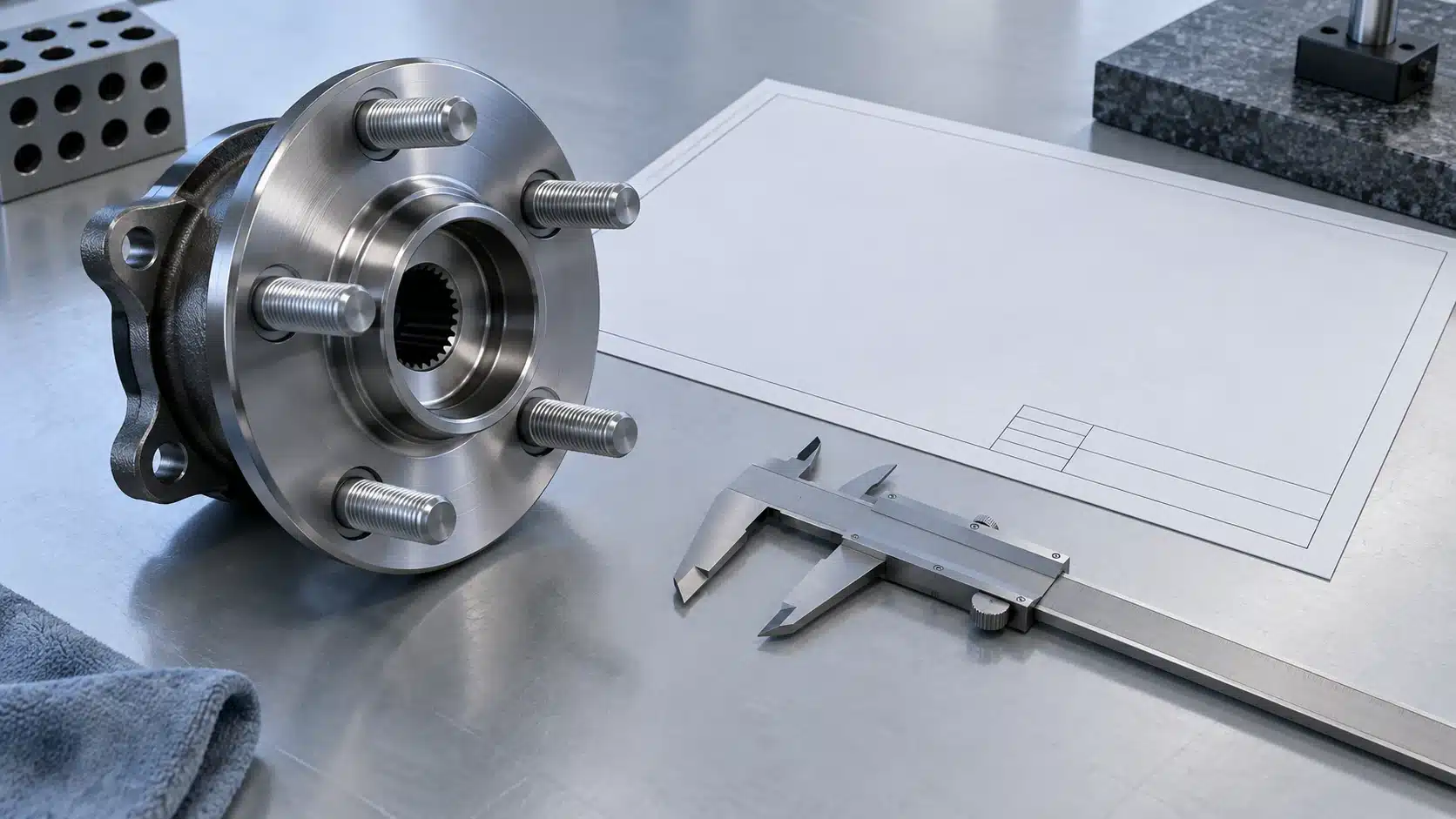

# Wheel Hub Unit Flange Dimensions and Bolt Patterns: A Data Guide

Wheel hub flange dimensions are among the most useful data points in wheel-end sourcing, but they are also among the easiest to misunderstand. Two hub units can look nearly identical in a photograph and share the same wheel bolt count while differing in pilot diameter, pitch circle diameter, flange offset, spline geometry, mounting pattern, ABS configuration, or bearing envelope. Any one of those differences can prevent installation or create an unsafe mismatch.

For distributors, catalog teams, and private-label buyers, dimensional data should support identification and validation. It should not replace a verified application record, an OE cross-reference, or an approved sample. A robust hub record connects measurements to a specific drawing revision, measurement method, unit, tolerance, application, and evidence source.

This guide explains the major flange and interface fields used for a wheel hub bearing assembly, how to measure them consistently, and how to turn measurements into controlled product data.

What Does a Wheel Hub Flange Do?

The flange is the structural interface that locates and supports the wheel, brake rotor or drum, and related fasteners. On many modern hub units, the outboard flange carries wheel studs or threaded wheel-bolt holes. The inboard side may have a second mounting flange that bolts the hub unit to the steering knuckle or axle housing. Driven applications also have an internal spline or another torque-transmitting interface.

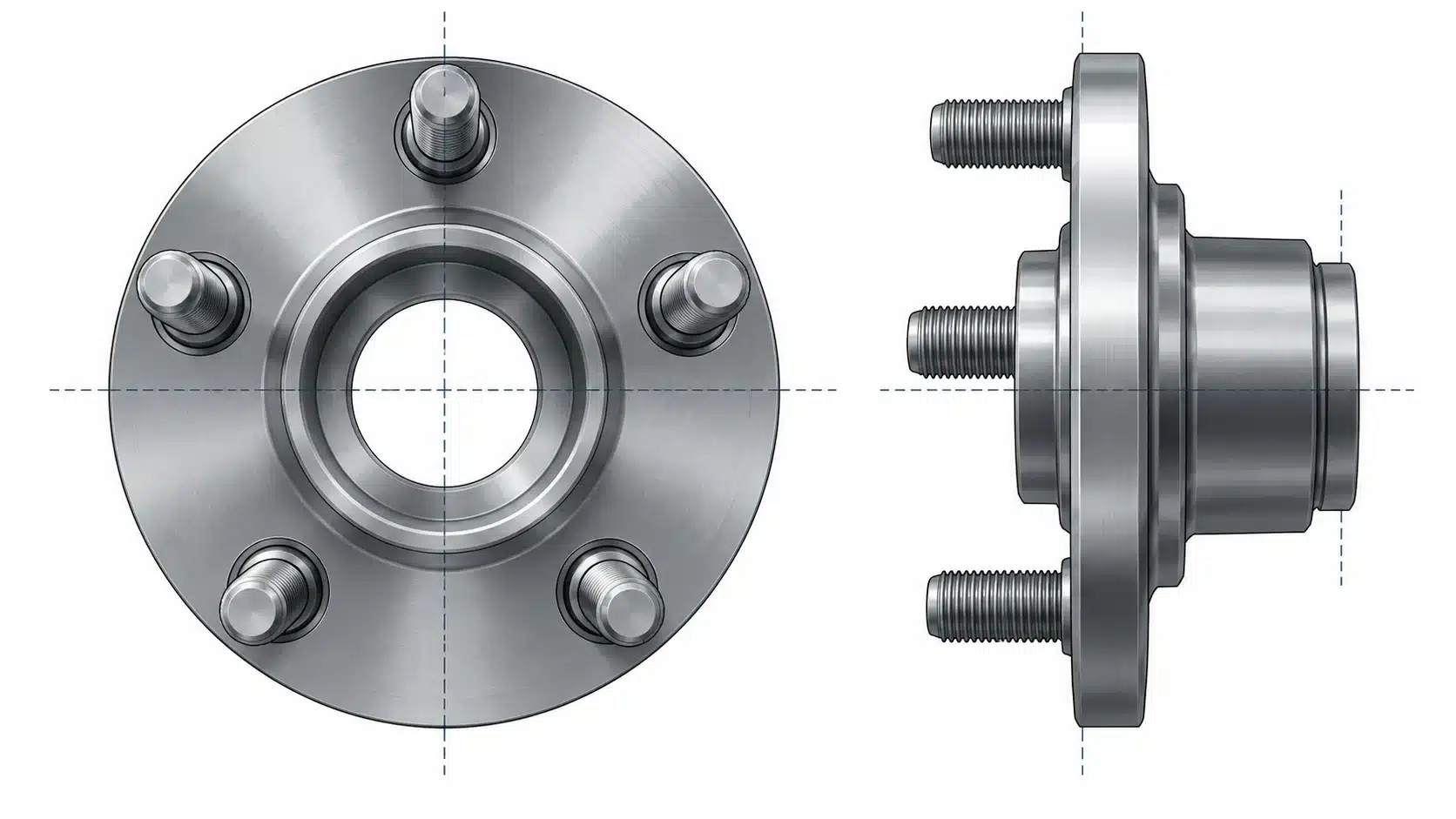

This architecture creates several separate reference systems:

• the wheel mounting face;
• the wheel pilot or center bore interface;
• the wheel fastener pitch circle;
• the brake rotor or drum pilot and mounting face;
• the knuckle mounting face and bolt pattern;
• the bearing rotational axis;
• the axle spline, when present;
• the ABS encoder or tone-ring location.

Measurements are meaningful only when the record states which reference system and surface were used. “Flange diameter 140 mm,” for example, does not tell a buyer whether 140 mm is the outside diameter, wheel-stud circle, mounting-bolt circle, or a packaging measurement.

Wheel Hub Flange Dimension Data Dictionary

The following fields form a practical minimum data dictionary. Suppliers may use different names, so the purchasing specification should define each term rather than rely on abbreviations alone.

Each field should include a unit and tolerance. For international programs, store the controlled value in one base unit and generate conversions for display. Repeatedly converting rounded values between inches and millimeters can create false discrepancies.

Understanding Wheel Bolt Patterns

A wheel bolt pattern is commonly expressed as a fastener count and pitch circle diameter, such as 5 x 114.3. The first number is the number of studs or bolt holes. The second is the pitch circle diameter, usually in millimeters. This notation is concise, but it is not a complete hub specification.

Measuring an even-numbered pattern

For a four- or six-fastener pattern with evenly spaced holes, a direct measurement across opposite hole centers can represent the PCD. A coordinate measuring machine or optical system is preferred for controlled inspection because it establishes center locations without relying on the operator to estimate edges.

Measuring an odd-numbered pattern

For a five-fastener pattern, there is no directly opposite hole. The PCD must be derived from measured coordinates, a purpose-built gauge, or a defined geometric calculation. Measuring from the center of one hole to the outside edge of another may provide a workshop estimate, but it should not be treated as authoritative catalog data unless the method and corrections are defined.

Studs versus threaded holes

Two flanges can share bolt count and PCD while using different retention systems. A studded hub record should include stud thread, under-head or press-fit geometry where relevant, exposed length, shoulder dimensions, and installed orientation. A wheel-bolt hub should include the internal thread designation, usable thread depth, seat compatibility where applicable, and the drawing requirement for chamfers.

Fastener finish matters as well. Coating changes can affect corrosion resistance, prevailing torque, or the relationship between applied torque and clamp load. The hub supplier should not substitute a fastener merely because the nominal thread fits.

Pilot Diameters and Functional Lands

The pilot is a cylindrical locating feature. Depending on the design, it may locate the wheel, brake rotor, drum, knuckle, seal, or another mating part. A pilot dimension must describe the functional cylindrical land, not the lead-in chamfer, rust-prevention coating buildup, casting draft, or a nonfunctional relief.

Record at least:

• nominal diameter and tolerance;
• length of the functional land;
• chamfer or lead-in requirement;
• surface finish where controlled;
• coating condition at inspection;
• the mating component it locates;
• the datum and measurement temperature if precision requires it.

One common catalog failure occurs when a wheel pilot and a rotor pilot are treated as the same feature. They may share a diameter in some designs, but that should be proven by the drawing rather than assumed. Another failure occurs when a corroded field sample is measured and its reduced or irregular surface is entered as the production dimension.

Flange Offset, Height, and Mating Faces

Axial dimensions affect wheel position, brake alignment, seal engagement, and sensor air gap. A small offset difference can be more consequential than a larger difference in an external nonfunctional diameter.

“Flange offset” must therefore be written as a relationship between two named planes. A useful definition might be: axial distance from datum A, the inboard knuckle-mounting face, to datum B, the outboard wheel-mounting face. If the brake-rotor face is different from the wheel face, it should have its own field.

Before measuring, inspect the part for transport protectors, gaskets, burrs, coatings, dirt, and raised identification marks. State whether studs are included in overall height. Support the component in a way that does not preload the bearing or rock on an irregular surface. For repeated inspection, a fixture and a documented work instruction reduce operator variation.

The following axial relationships are often valuable:

Do not merge these fields into a single “height” column unless every record uses the same endpoints.

Mounting Flange and Knuckle Interfaces

A bolt-on hub assembly normally attaches to the knuckle or axle housing through an inboard flange. Buyers should record the hole count, pattern, hole or thread specification, clocking, locating pilot, mounting-face shape, and any asymmetric feature.

Asymmetry deserves special attention. A pattern that looks square may have one offset hole. A round flange may contain a cable-routing relief or sensor boss that determines clocking. A mounting ear can differ in thickness. Catalog images taken from one angle may conceal these differences.

For threaded holes, specify thread system, nominal diameter, pitch, class or tolerance, minimum full-thread depth, and coating. For through-holes, specify functional diameter, tolerance, spotface or counterbore, and whether mounting bolts are part of the kit. Where the design uses captive bolts or studs, control their grade, coating, length, and installation security.

Spline Data for Driven Hub Units

Spline count is a useful screening field, but it is not enough to guarantee axle compatibility. A complete spline definition can include profile standard, pressure angle, module or diametral pitch, major and minor diameters, effective tooth thickness, fit class, lead, chamfer, engagement length, and heat-treatment requirements.

For catalog screening, teams often record spline count, an inspection diameter, and engagement length. For manufacturing approval, use the controlled engineering drawing and functional gauges. A hand caliper cannot validate the complete involute form or fit. A hub that slides onto one loose sample axle is also not proof of production compatibility.

Driven and non-driven versions may share the same external flange geometry. The absence of a spline, or a change in spline specification, can distinguish front from rear or two drivetrain variants. See the related guide to front and rear wheel hub bearings for application-level differences.

ABS Encoder and Tone-Ring Position

Modern hub units may integrate a magnetic encoder or a toothed tone ring. Dimensional inspection should connect the target’s location to its electrical function. Record whether the target is magnetic or ferromagnetic, active side, pole or tooth requirement where controlled, axial and radial position, protective handling requirement, and compatible sensor arrangement.

A visually correct encoder can still be unsuitable if the pole pattern, direction, air gap, or signal behavior differs. Do not place magnetic parts directly on contaminated steel benches, expose them to metal debris, or verify them only by color. The technical review should include the appropriate signal or magnetic-pole test specified for the application. Additional background is available in ABS magnetic encoders in wheel hub bearings.

A Controlled Measurement Workflow

The following workflow is suitable for incoming samples and catalog-data validation.

1. Establish identity and condition

Assign a sample ID. Photograph all sides, labels, markings, connectors, studs, and packaging. Record whether the part is new, used, cleaned, coated, damaged, or incomplete. A worn field sample may support investigation but should not be the sole dimensional master.

2. Select the authoritative evidence

Link the sample to an OE number, supplier drawing, vehicle application, catalog record, and revision. Note where each relationship came from. An OE cross-reference and fitment file should preserve source and review status rather than collapse every reference into an unqualified equivalence.

3. Define datums and methods

Identify the rotational axis, primary mounting face, and locating pilot. Specify the instrument and method for each field. Calibrate instruments according to the quality system. If a result is calculated, store the inputs and formula or retain the coordinate report.

4. Measure repeatably

Take sufficient readings to detect ovality, taper, runout, or operator variation where those characteristics matter. Do not force a flexible seal, protective cap, or loose stud into the measurement. Record actual observations separately from nominal drawing values.

5. Compare with tolerances

Pass/fail decisions require tolerances, not just nominal dimensions. If the evidence source gives only a rounded catalog value, label it as descriptive rather than converting it into a manufacturing tolerance.

6. Review fitment-critical differences

Flag differences in PCD, pilots, mounting clocking, offset, spline, ABS target, connector, and included hardware. Decide whether the difference is a measurement issue, revision, supersession, market variation, or incorrect cross-reference.

7. Approve and lock the record

Technical and catalog reviewers should approve the record with date, evidence, and revision. Subsequent changes should create a new revision rather than silently overwrite the prior value.

Why One Matching Dimension Does Not Prove Fitment

A common sourcing shortcut is to search by bolt pattern or spline count and accept the closest-looking product. This creates false matches because application fitment is multi-dimensional. The following pairs can share one field and still be incompatible:

• same wheel PCD, different pilot diameter;
• same pilot, different flange offset;
• same spline count, different spline profile or engagement;
• same mounting pattern, different hole clocking;
• same external dimensions, different ABS signal target;
• same OE family, different drivetrain or production date;
• same hub unit, different required kit hardware.

Dimensions are best used as a validation layer after application and OE evidence have produced a candidate. They are also useful for detecting catalog duplicates and supplier discrepancies. They should not be used as the only fitment key.

Recommended Spreadsheet Structure

A dimensional spreadsheet should use one row per controlled part revision, not one row per marketing name. Suggested columns include:

1. internal part number and revision;
2. supplier part number and drawing revision;
3. OE reference with evidence status;
4. vehicle application record ID;
5. driven or non-driven position;
6. wheel bolt count and wheel PCD;
7. wheel pilot diameter and land length;
8. flange outside diameter and thickness;
9. datum-to-datum axial dimensions;
10. knuckle mounting count, pattern, and hole specification;
11. spline definition fields;
12. ABS target and sensor configuration;
13. measurement method and instrument;
14. nominal, tolerance, and measured result;
15. sample ID, date, inspector, and reviewer;
16. photograph and report links;
17. release status and change reason.

Use separate numeric fields and unit fields. Avoid placing values such as “139/5×114.3/64” into one text cell because those compound strings are difficult to validate, filter, and exchange.

Supplier Questions Before Approval

Ask the supplier to answer the following with drawing references or inspection evidence:

• Which surface is the primary installation datum?
• How are wheel and knuckle PCD values inspected?
• Are pilots measured before or after coating?
• Which axial dimension controls rotor and wheel position?
• What is the complete spline specification and functional gauge requirement?
• Is the ABS target magnetic or toothed, and which side is active?
• Are studs, bolts, nuts, caps, and sensors included in the saleable kit?
• Which features changed from the previous drawing revision?
• What inspection report is supplied with samples or production lots?
• How are measurement records linked to traceability codes?

The answers should feed the purchase specification and control plan. A generic dimensional diagram without tolerances or datum definitions is useful for initial communication but not sufficient for product approval.

Frequently Asked Questions

Is a 5 x 114.3 wheel hub interchangeable with every other 5 x 114.3 hub?

No. That notation only describes wheel fastener count and pitch circle diameter. Pilot, flange offset, knuckle mounting, spline, ABS, bearing capacity, and application can differ.

Can a caliper provide all required hub dimensions?

No. A caliper can support preliminary checks, but PCD coordinates, runout, spline form, tight pilot tolerances, and datum relationships may require dedicated gauges, a height system, optical equipment, or a CMM.

Should measured sample values replace drawing values?

No. Store nominal drawing requirements and actual sample results in separate fields. Investigate discrepancies and retain the evidence and disposition.

What is the most important hub flange dimension?

There is no single universal field. Fitment depends on a controlled combination of application, OE evidence, mounting interfaces, axial relationships, spline, and ABS configuration.

Final Takeaway

Reliable wheel hub flange dimensions are defined data, not isolated numbers copied from a catalog image. Build the record around named datums, functional surfaces, units, tolerances, methods, and evidence. Use bolt patterns and measurements to validate a candidate hub, while retaining application, OE, ABS, and kit-content controls.

For sourcing support, send Jinan Huayuan Auto Bearing the target vehicle application, OE reference, market, axle position, sample photographs, and any controlled drawings. Final fitment and technical release should always be completed against approved application data and installation requirements before ordering or publication.
