HJDP Wheel Hub Bearing Assembly with ABS for Hyundai Santa Fe (DM/TM)/Palisade (LX2) & Kia Carnival (KA4)
SKU: HQ0575
Direct OE Replacement: Precision-engineered for Hyundai Santa Fe (DM/TM 2012+), Palisade (LX2 2020+), and Kia Carnival (KA4 2021+). Replaces OE part number 51750-S1000 with a 100% in-situ installation guarantee, requiring no modifications for a seamless fit.
Premium GCr15 Steel Construction: Crafted from high-carbon chromium bearing steel (GCr15) treated with vacuum quenching to achieve surface hardness of 62HRC. Features a satin-finished high-strength alloy steel flange for superior load-bearing capacity and impact resistance.
Integrated ABS Sensor Technology: Comes pre-assembled with a high-precision ABS wheel speed sensor, weather-resistant rubber harness, and engineering plastic connector. Ensures accurate signal transmission to the ESP/ABS system in temperatures ranging from -40C to 120C.
Superior Sealing & Quiet Operation: Equipped with a multi-lip nitrile rubber sealing assembly and SPCC steel framework to isolate dust, moisture, and road debris. Pre-lubricated with high-quality synthetic grease to reduce vibration and ensure whisper-quiet driving.
Complete Assembly Kit: Ready-to-install unit includes the hub bearing core, 5 pre-pressed M12x1.5 silver-gray high-strength wheel bolts, and mounting flange. Laser-engraved with HJDP brand and part number HH0049HQ0575 for easy identification and quality assurance.
Description
HJDP OE-Level Wheel Hub Bearing Assembly (Part No.: HH0049HQ0575) is a direct replacement part, specifically engineered for Beijing Hyundai Santa Fe (DM) 2012-2018, Beijing Hyundai Santa Fe (TM) 2019-, Hyundai Palisade (LX2) 2020- and Yueda Kia Carnival (KA4) 2021-. Adopting a high-precision integrated structural design, it integrates the hub bearing core, high-strength mounting flange and ABS wheel speed sensor into one ready-to-install unit. This design ensures perfect fitment, stable performance and reliable safety for mid-to-large SUVs and MPVs, making it suitable for daily city driving, family long-distance travel and light off-road use.
Brand: HJDP
Part Number: HH0049HQ0575
Reference Price: 112 RMB (cost-effective OE-quality replacement part for Hyundai & Kia mid-to-large SUVs and MPVs, offering reliable performance at a competitive price)
II. Compatibility & OE Reference Numbers
This HJDP wheel hub bearing assembly is fully compatible with specified Hyundai and Kia models, perfectly replacing the original OE number 51750-S1000. It ensures 100% in-situ installation without any modification or calibration, saving time for repair technicians and DIY enthusiasts.
OE Interchange Number
51750-S1000
Applicable Models
Hyundai:
-
Hyundai Santa Fe (DM) 2012-2018 (Beijing Hyundai)
-
Hyundai Santa Fe (TM) 2019- (Beijing Hyundai)
-
Hyundai Palisade (LX2) 2020-
Kia:
-
Kia Carnival (KA4) 2021- (Yueda Kia)
Mounting Position: Front Wheel (Universal Design for Multiple Models, Fit according to OE number)
III. Overall Structural Design
Adopts a High-Precision Integrated Structure, integrating the hub bearing core, high-strength mounting flange and ABS wheel speed sensor assembly (including black wear-resistant insulated wire harness + gray high-temperature resistant engineering plastic connector) into a ready-to-install unit. The compact and solid structure ensures easy assembly, excellent load-bearing capacity (adapting to the characteristics of mid-to-large SUVs and MPVs with heavy weight and large load), and can simultaneously meet the core needs of vehicle power transmission, wheel support and ABS system signal transmission. It perfectly matches the chassis design of Hyundai Santa Fe (DM/TM), Palisade (LX2) and Kia Carnival (KA4), ensuring consistent performance with the original vehicle parts.
IV. Material & Process Details
|
Component
|
Material Selection
|
Process Treatment
|
Core Advantages
|
|
Bearing Body
|
High Carbon Chromium Bearing Steel (GCr15/SAE 52100)
|
Vacuum Quenching + Precision Grinding + Reinforced Anti-Rust Coating
|
Surface hardness up to 62HRC, core toughness 38HRC, balancing excellent wear resistance and strong impact resistance. It can stably operate in daily driving and light off-road environments, withstanding the load pressure of mid-to-large SUVs and MPVs.
|
|
Mounting Flange
|
High-Strength Alloy Steel
|
Satin Finish + Precision Drilling + Stress Relief Treatment
|
Smooth and scratch-resistant surface, precise hole positions that match the original vehicle steering knuckle, strong load-bearing capacity that can bear the weight of mid-to-large vehicles, and resistance to deformation under long-term normal use.
|
|
ABS Sensor Assembly
|
Black Weather-Resistant Rubber (Wire Harness) + Gray High-Strength Engineering Plastic (Connector)
|
Insulation Sealing + Snap-On Fixing + Anti-Tear Treatment
|
Resistant to high and low temperatures (-40℃~120℃), aging and wear; ensures accurate wheel speed signal transmission, fully compatible with the original vehicle ABS/ESP system, and can adapt to the vibration during daily driving and light off-road, maintaining stable signal output.
|
|
Sealing Assembly
|
High-Quality Nitrile Rubber + SPCC Steel Framework
|
Multi-Lip Sealing + Oil-Resistant Coating + Dust-Proof Design
|
Effectively isolates dust, moisture, road debris and muddy water, prevents lubricating grease leakage, and extends the service life of the bearing in daily driving and light off-road environments, reducing maintenance frequency.
|
V. Key Detail Features
-
Wheel Mounting Surface: The HJDP brand logo, part number (HH0049HQ0575) and product code are clearly laser-engraved on the surface, easy to identify. 5 silver-gray high-strength wheel bolts (specification M12×1.5) are evenly distributed in a ring, ensuring stable fixation of the wheel even under daily driving and light off-road vibration. The gray ABS sensor connector is led out from the side, with a standard interface that perfectly matches the original vehicle wiring harness, facilitating quick and firm connection.
-
ABS Sensor Detail: Equipped with high-precision induction ring, perfectly matching the ABS system of Hyundai Santa Fe, Palisade and Kia Carnival, ensuring accurate and stable wheel speed signal transmission, effectively preventing wheel lock during braking on urban and light off-road roads.
-

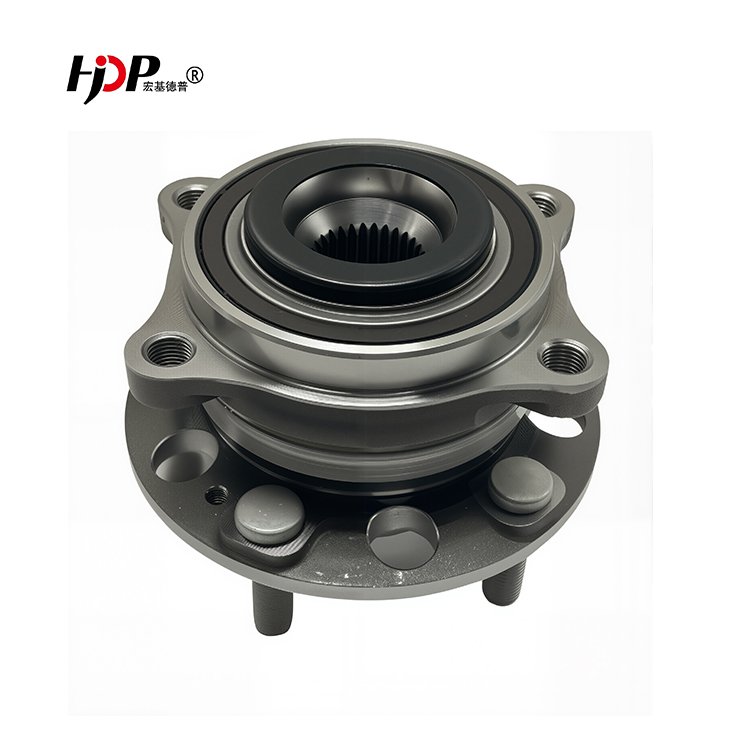

Side View Features: 4 threaded steering knuckle mounting holes are distributed on the edge of the flange with precise positions (no deviation), ensuring firm connection with the vehicle chassis. The ABS wire harness is fixed on the flange surface through a special anti-shake snap-on buckle, avoiding shaking, wear and tear during driving.
-

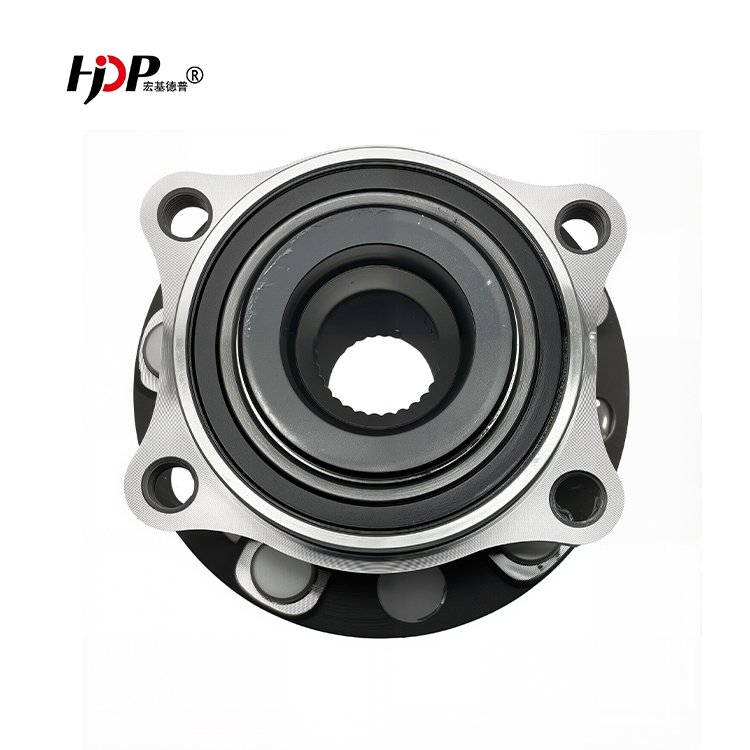

Bearing End Face Details: The center is a precision internal spline shaft hole, specially designed to fit with the vehicle half-shaft, ensuring stable power transmission without jitter or abnormal noise during high-speed driving. The bearing outer ring is designed to match the original vehicle steering knuckle, ensuring no gap after assembly and strong stability, avoiding abnormal noise caused by loose fit.
-
Marking Information: The OE number (51750-S1000), part number (HH0049HQ0575) and product model are engraved on the flange surface, facilitating quick identification of applicable models and specifications for repair technicians and customers.
VI. Core Technical Specifications
|
Specification Category
|
Specification Details
|
|
Net Weight
|
4.1KG (solid material selection, thickened bearing body and flange, ensuring stable load-bearing performance for mid-to-large SUVs and MPVs, adapting to the vehicle’s weight and load requirements)
|
|
Overall Dimensions
|
145×140×140mm (Length × Width × Height)
|
|
Bearing Type
|
Integrated Wheel Hub Bearing (with ABS Sensor)
|
|
Wheel Bolt Specification
|
M12×1.5 (5 pieces)
|
|
Flange Diameter
|
155mm
|
|
Mounting Hole Pitch
|
114.3mm
|
|
Core Functions
|
Power Transmission + Wheel Support + ABS Wheel Speed Signal Collection (Daily & Light Off-Road Adaptation)
|
VII. Core Product Advantages
-
Multi-Model Compatibility: 100% OE standard design, specifically compatible with Hyundai Santa Fe (DM 2012-2018/TM 2019-), Palisade (LX2 2020-) and Kia Carnival (KA4 2021-), direct replacement without modification.
-
Stable Load-Bearing Design: 4.1KG solid structure, suitable for mid-to-large SUVs and MPVs, meeting daily driving and family travel needs, strong load-bearing capacity.
-
Reliable ABS Signal Transmission: High-precision ABS sensor with anti-shake design, ensures stable signal transmission to ESP/ABS system, enhancing braking safety in various road conditions.
-
Superior Sealing & Durability: Multi-lip sealing assembly, effectively isolating dust and moisture; GCr15 bearing steel with vacuum quenching, extending service life in daily driving environments.
-
Ultra-Quiet & Stable Operation: Precision ground bearing surface and high-quality synthetic lubricating grease, effectively reducing driving noise and vibration, improving driving comfort for family travel.
-
Cost-Effective & Easy Installation: Ready-to-install integrated design, no additional assembly required, saving installation time and labor costs; OE-level quality with competitive price, providing reliable replacement option.
VIII. HJDP Professional Installation Tips
1. Before installation, confirm that the OE number (51750-S1000), part number (HH0049HQ0575) and vehicle model match to avoid installation errors. 2. Keep the flange and steering knuckle mounting surfaces clean and free of debris to ensure a tight fit and stable operation. 3. Tighten the bolts according to the original factory torque standard (recommended 75-85 N·m) to ensure firm installation and avoid loosening during driving. 4. Check the ABS sensor connection after installation to ensure normal signal transmission; test the ABS function before formal use. 5. Regularly inspect the bearing for abnormal noise or vibration during use, and maintain or replace it in time if necessary.
IX. About HJDP
HJDP is a professional manufacturer of automotive chassis and transmission components, focusing on OE-level replacement parts for Hyundai, Kia and other mainstream automotive brands. All products are produced in strict compliance with IATF16949 quality management system, undergoing strict quality inspection before leaving the factory, ensuring high quality, stability and reliability. We are committed to providing cost-effective auto parts for global customers, meeting the needs of daily driving and family travel scenarios.
