HJDP Front Axle Assembly 5 Lug Kit for VW Passat Audi A3 Jetta VS5 VS7 Durable Steel Replacement Wheel Hub Bearings
PRECISION GEN 3 DESIGN – Features a distinctive 3-bolt triangular mounting flange and 5 threaded lug holes. The internal spline is precision-toothed for seamless CV joint engagement, while the integrated magnetic encoder ensures accurate ABS/ESP signal tracking.
ADVANCED GERMAN EFD TECHNOLOGY – Manufactured using German EFD induction hardening to reach 2000°C instantly. The salt bath quenching process creates a superior martensite structure, ensuring exceptional hardness, toughness, and fatigue strength for long-term safety.
OE-LEVEL FIT AND PERFORMANCE – Strict adherence to ISO/TS quality standards with a 1.8-2.0mm quenching depth similar to Koyo standards. This front wheel hub assembly ensures low noise, reduced vibration, and a mirror-like finish for easy installation.
DURABLE CONSTRUCTION – Constructed from high-durability forged steel with a shot-peened matte dark-grey body and polished face. Weighing 3.35kg, this unit is built to withstand heavy loads and harsh driving conditions, backed by 30 years of manufacturing expertise.
Description
HJDP Front Wheel Hub & Bearing Assembly (Gen 3) for VW/Audi/Skoda/Jetta
I. Brand & Product Overview
II. Core Technical Specifications
-
Net Weight: 3.35kg (optimized lightweight design reduces unsprung mass, enhances suspension response and improves fuel economy)
-
Package Dimensions: 140mm x 140mm x 140mm (compact and regular, easy for storage and transportation, effectively protecting the product from damage)
-
Drive Connection: Internal Spline (Precision Toothed) for stable power transmission
-
Mounting Flange: 3-Bolt Triangular Flange, ensuring firm connection with the steering knuckle
-
ABS/ESP Compatibility: Integrated black magnetic encoder seal for accurate ABS/ESP signal tracking, supporting the normal operation of the vehicle’s active safety system
-
Reference Price: 72 RMB
III. OEM Reference Numbers
IV. Compatible Vehicles
Volkswagen (VW):
-
ID.3
-
Lamando L
-
Passat (2024)
-
New Lavida (2018-2022)
-
Touran L
-
CC
-
Tayron
-
Magotan B8L
Audi:
-
A3 (2017-2020)
Jetta / Skoda:
-
Jetta VS5
-
Jetta VS7
-
Skoda Octavia

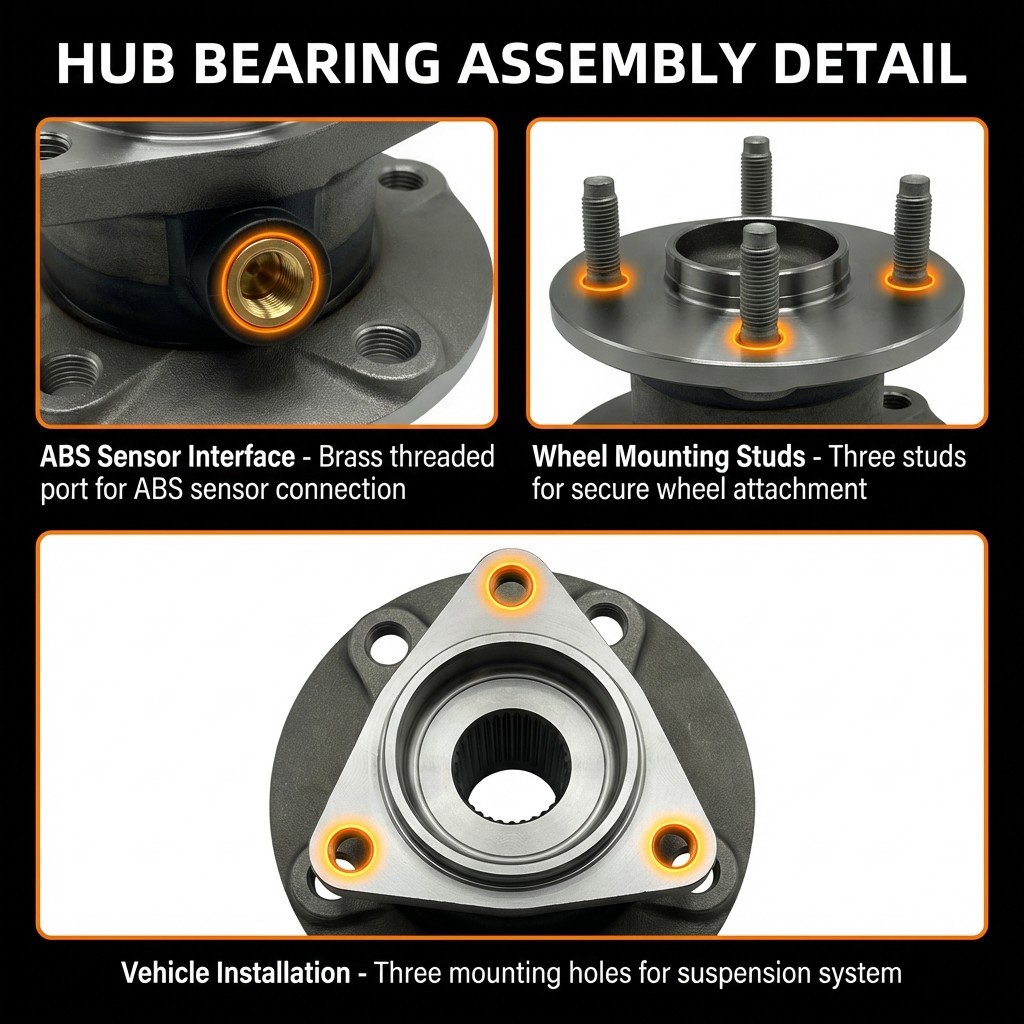

V. Visual Appearance & Texture Details

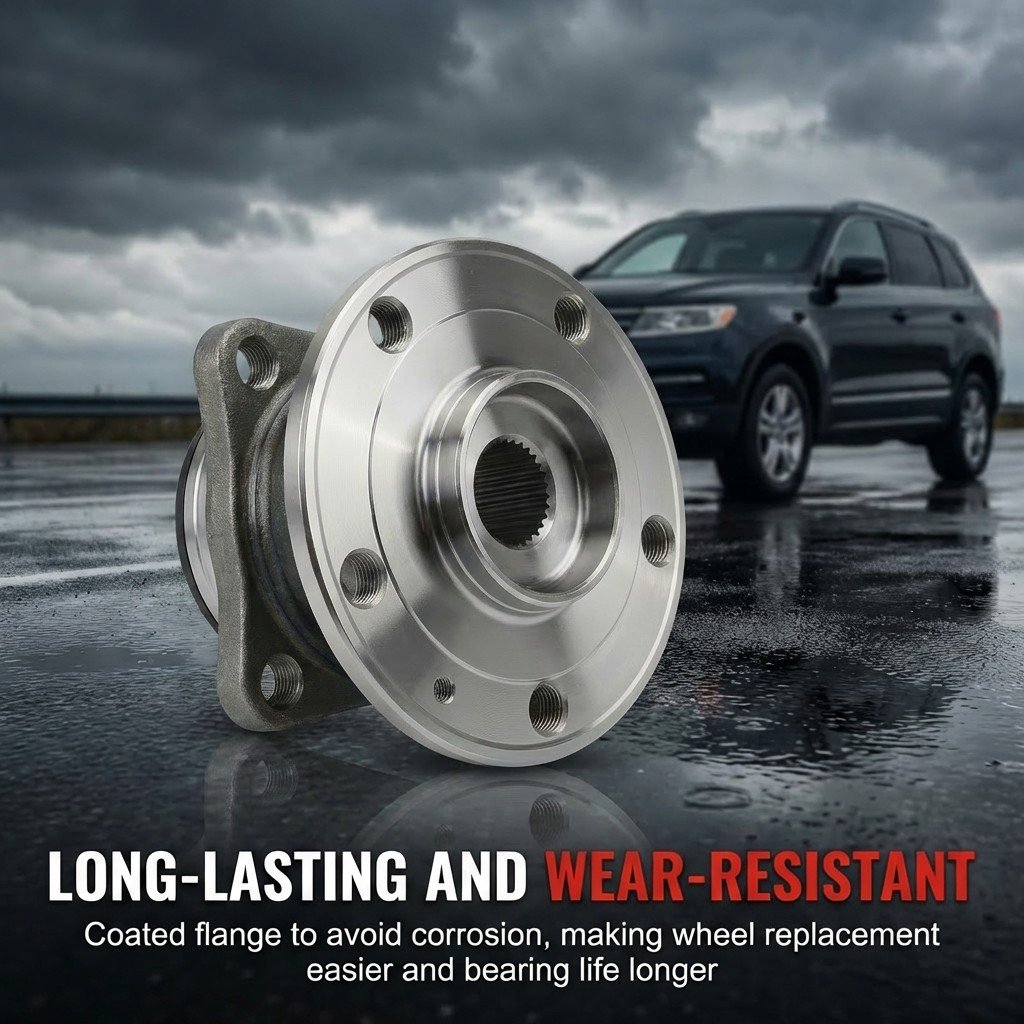

Upper Body (Mounting Flange)
-
Shape: Distinctive 3-ear (Triangular) mounting design, tailored for the steering knuckle structure of target models
-
Material & Finish: High-durability forged steel, treated with shot peening to present a matte dark-grey finish, enhancing corrosion resistance and anti-fatigue performance
-
Fastening Design: 3 non-threaded clearance holes for knuckle mounting, ensuring precise alignment and firm installation
Wheel Hub Face
-
Geometry: Circular flange with 5 threaded lug bolt holes + 1 positioning hole, matching the wheel bolt distribution of target models
-
Surface Finish: Mirror-like precision machining with fine concentric lathing patterns, ensuring smooth contact with the wheel and improving mounting stability
-
Chamfering: Beveled edges on all bolt entries for easy bolt installation, avoiding thread damage during assembly
Internal Core
-
Spline Detail: High-density internal teeth for constant velocity (CV) joint engagement, ensuring smooth power transmission and reducing driving vibration
-
Sealing System: Integrated black magnetic encoder seal, which not only locks internal high-quality lubricating grease but also ensures accurate ABS/ESP signal transmission, extending the service life of the bearing
VI. Material & Craftsmanship Advantages
-
Color Palette: Cool silver metallic (wheel hub face) vs. industrial charcoal grey (upper body), forming a distinct visual contrast and reflecting high-quality machining craftsmanship
-
Light Reflection: High specular highlights on the lathed disk face, a direct manifestation of precision machining
-
Traceability: Laser-etched identification on the hub face, including brand logo and production batch number, ensuring product traceability and genuine authentication
-
Durability: High-strength forged steel material and strict heat treatment process, significantly improving the bearing’s anti-impact and anti-fatigue performance, with a service life far exceeding ordinary replacement parts
VII. Installation Suggestion
