HJDP 3rd Gen Front Rear Wheel Hub Bearing Assembly with ABS for Suzuki Grand Vitara (JT) 2007-2017 & Kizashi (FR) 2010-2015
Exact Fitment: Designed for Suzuki Grand Vitara (JT) 2007-2017 and Suzuki Kizashi (FR) 2010-2015. Replaces OE numbers 43401-65J02, 43401-65J00, 43401-65J01, 43402-57L50, and 43402-57L51. Ensure seamless compatibility with your vehicle’s suspension system.
Integrated ABS Sensor: Features a pre-installed ABS wheel speed sensor with a weather-resistant black rubber harness and grey engineering plastic plug. The secure clip fastening prevents vibration wear, ensuring accurate signal transmission to the ESP/ABS system for safe braking.

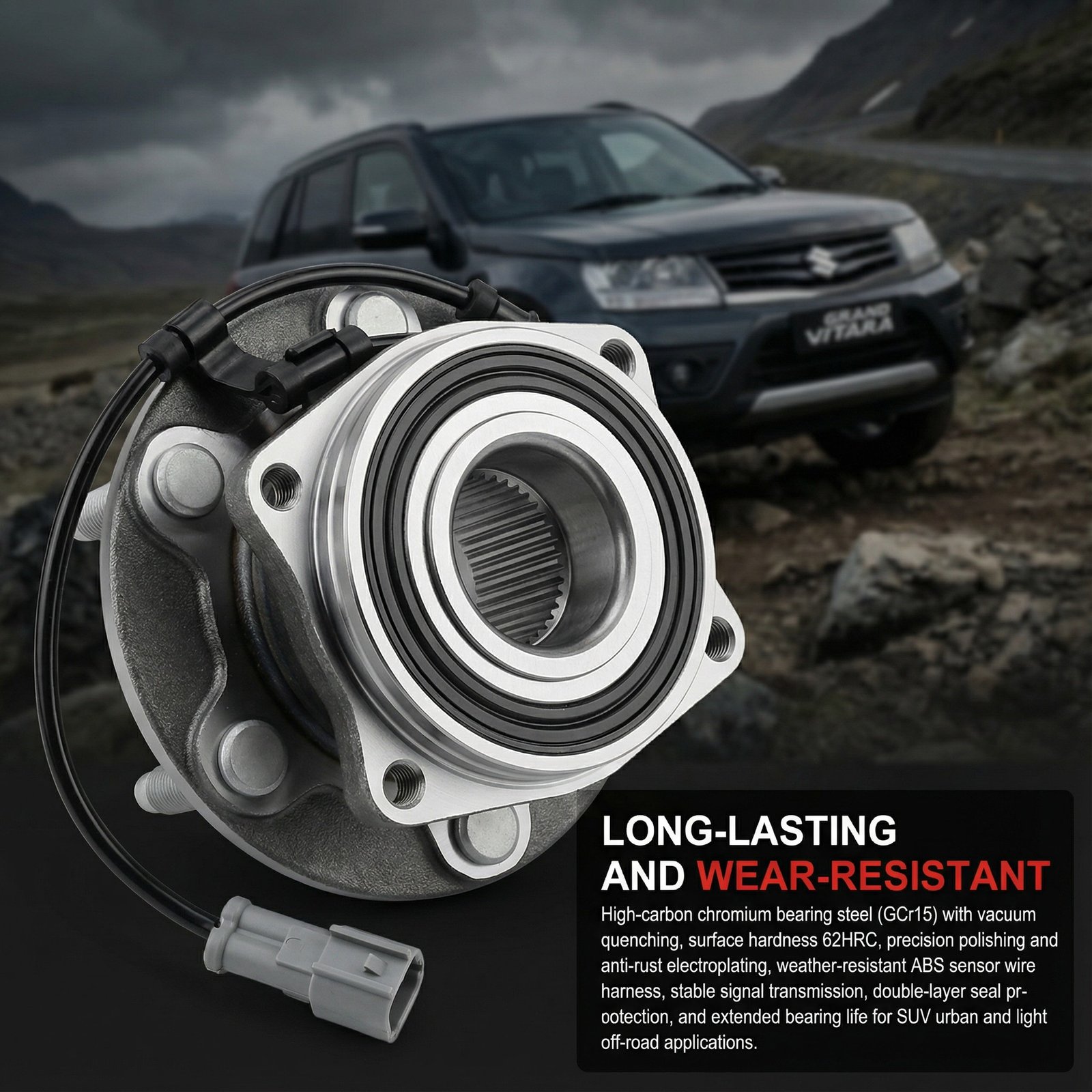

Premium Materials: Constructed from GCr15 High Carbon Chrome Bearing Steel treated with vacuum quenching and precision polishing. Achieves a surface hardness of 62HRC and core toughness of 38HRC, offering superior resistance to wear, impact, and fatigue.
Advanced Sealing & Design: Third-generation ball type integrated structure with a multi-lip seal design using high-quality nitrile rubber. Effectively blocks dust and water ingress while preventing grease leakage to extend service life in harsh road conditions.
Ready to Install: Pre-assembled 5-lug unit with high-strength M12x1.25 wheel bolts and a precision-machined flange. The unit is strictly tested for dynamic balance and geometric tolerance to eliminate noise and vibration during driving.
Description
I. Product Overview & Core Highlights
II. Compatibility & OE Reference Numbers
OE Interchange Numbers
Applicable Suzuki Models
-
Suzuki (Imported) Grand Vitara (JT): 2007-2017 All Models
-
Suzuki (Imported) Kizashi (FR): 2010-2015 All Models
III. Overall Structural Design
IV. Material & Process Details
|
Component
|
Material Selection
|
Process Treatment
|
Core Advantages
|
|---|---|---|---|
|
Bearing Body
|
High Carbon Chromium Bearing Steel (GCr15/SAE 52100)
|
Vacuum Quenching + Precision Polishing + Anti-Rust Electroplating
|
Surface hardness up to 62HRC, core toughness 38HRC, balancing wear resistance and impact resistance
|
|
Mounting Flange
|
High-Strength Alloy Steel
|
Frosted + Bright Surface Composite Metal Process
|
Smooth and wear-resistant surface, strong scratch resistance, suitable for long-term use under complex road conditions
|
|
ABS Sensor Assembly
|
Black Weather-Resistant Rubber (Wire Harness) + Gray High-Strength Engineering Plastic (Connector)
|
Insulation Sealing + Buckle Fixing
|
Resistant to high and low temperatures (-40℃~120℃) and aging; the wire harness is stably fixed on the edge of the flange through black buckles to avoid shaking and wear during driving
|
|
Sealing Assembly
|
High-Quality Nitrile Rubber + SPCC Framework
|
Multi-Lip Design
|
Effectively isolates dust and muddy water, prevents lubricating grease leakage, and extends the service life of the bearing
|
V. Key Detail Features
-

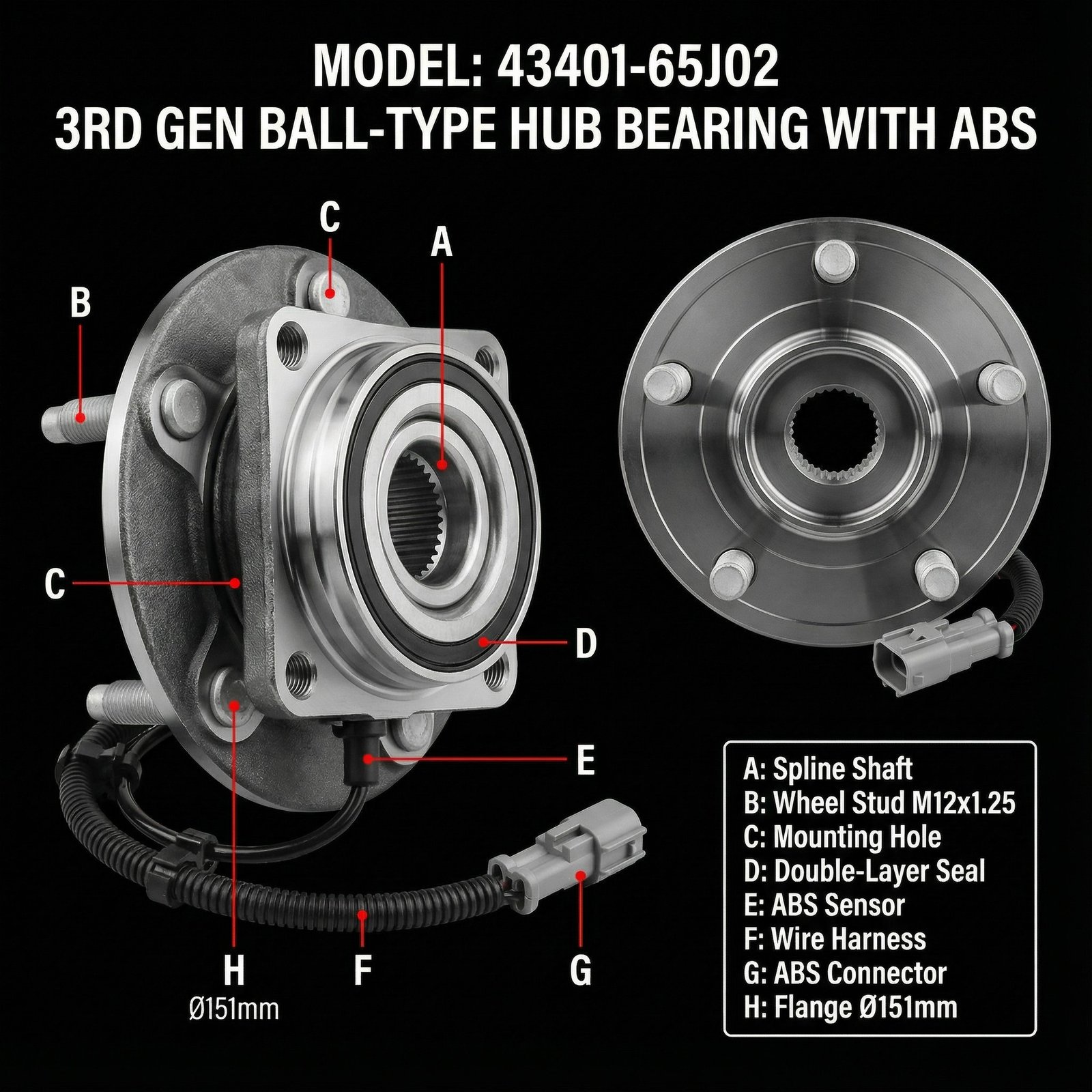

Wheel Mounting Surface: The HJDP brand logo and product code are clearly printed on the surface. 5 silver-gray high-strength wheel bolts (specification M12×1.25) are evenly distributed in a ring. The gray connector of the ABS sensor is led out from the side, with a neat interface, facilitating quick connection with the original vehicle wiring harness.
-

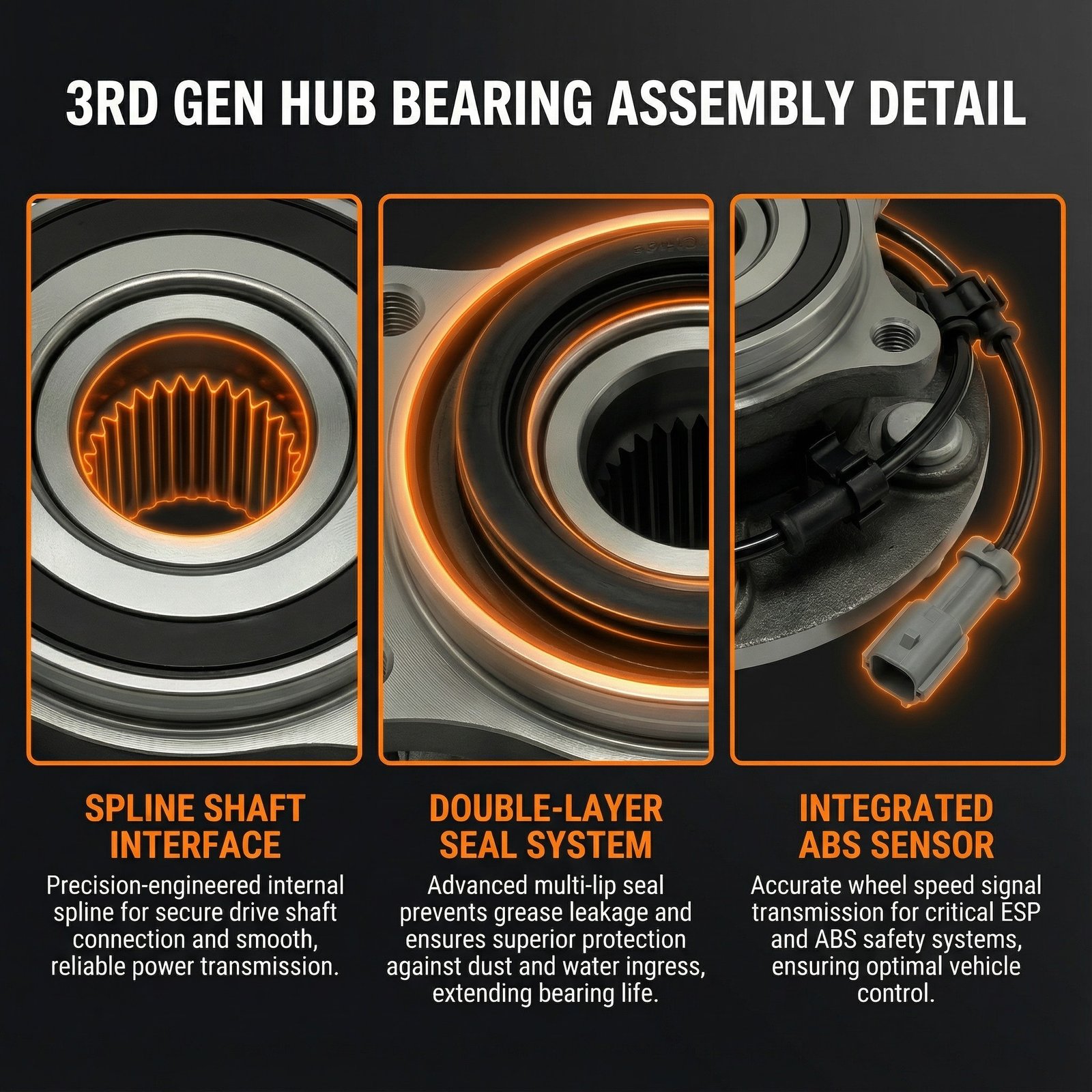

Side View Features: Threaded steering knuckle mounting holes are distributed on the edge of the flange with precise positions. The ABS wire harness is fixed on the flange surface through a special buckle. A double-layer sealing assembly is embedded on the outer side of the bearing to ensure sealing under harsh road conditions.
-
Bearing End Face Details: The center is a precision internal spline shaft hole (used to engage with the drive shaft to transmit power). The mounting seat structure of the bearing outer ring has high fit with the Suzuki steering knuckle, ensuring no gap after assembly and stable operation.
-
Marking Information: The OE number (e.g., 43401-65J02) and product model are engraved on the flange surface, facilitating quick identification of applicable models and specifications.
VI. Core Technical Specifications
|
Specification Category
|
Specification Details
|
|---|---|
|
Net Weight
|
3.15KG
|
|
Overall Dimensions
|
140×140×140mm (Length × Width × Height)
|
|
Bearing Type
|
3rd Generation Spherical Wheel Hub Bearing (with ABS Sensor)
|
|
Wheel Bolt Specification
|
M12×1.25 (5 pieces)
|
|
Flange Diameter
|
151mm
|
|
Mounting Hole Pitch
|
114mm
|
|
Core Functions
|
Power Transmission + Wheel Support + ABS Wheel Speed Signal Collection
|
VII. Core Product Advantages
-
Perfect Fitment for Suzuki Models: 100% OE standard design, compatible with Suzuki Grand Vitara (JT) 2007-2017 and Kizashi (FR) 2010-2015, direct replacement without modification.
-
3rd Gen Integrated Design: Ready-to-install unit, no additional assembly required, saving installation time and labor costs for repair shops and DIY enthusiasts.
-
Premium Durability: GCr15/SAE 52100 bearing steel with vacuum quenching, high hardness and impact resistance, suitable for light off-road and complex road conditions.
-
Reliable ABS Signal Transmission: Integrated ABS sensor with weather-resistant wire harness, ensures stable signal transmission to ESP/ABS system, preventing wheel lock and ensuring braking safety.
-
Superior Sealing Performance: Multi-lip seal with nitrile rubber and SPCC framework, effectively preventing dust, muddy water and grease leakage, extending service life.
