HJDP Wheel Hub Bearing Assembly with ABS for Mitsubishi Pajero V97
SKU: HQ0288
Perfect Fitment For Pajero V97: Designed strictly to OE specifications 3880A015 and 906557, this front hub unit provides a direct, modification-free replacement for Mitsubishi Pajero V97 models, ensuring seamless chassis integration.
Heavy-Duty Durability: Constructed from high-carbon chromium bearing steel GCr15 with vacuum quenching, this 4.9KG reinforced unit withstands heavy loads and harsh off-road terrains while maintaining superior structural integrity.
Integrated ABS Sensor: Features a pre-installed high-precision ABS wheel speed sensor with a wear-resistant harness, ensuring accurate signal transmission to the ESP system for reliable braking safety on complex surfaces.
Superior Sealing Protection: Equipped with a multi-lip nitrile rubber sealing assembly and oil-resistant coating to effectively block dust, mud, and water, preventing grease leakage and extending service life in extreme environments.
Smooth Quiet Operation: Precision-ground surfaces and high-quality synthetic grease reduce friction and vibration, delivering an ultra-quiet driving experience while the 5-bolt flange ensures stable wheel fixation under load.
Description
HJDP Wheel Hub Bearing Assembly with ABS for Mitsubishi Pajero V97
I. Product Overview & Core Highlights
HJDP OE-Level Wheel Hub Bearing Assembly is a direct replacement part, specifically designed for Mitsubishi Pajero V97. Adopting heavy-duty integrated structural design, it integrates hub bearing core, high-strength mounting flange and ABS wheel speed sensor into one ready-to-install unit, ensuring perfect fitment, strong load-bearing capacity and reliable safety for off-road SUVs, suitable for both daily city driving and harsh off-road scenarios.
Brand: HJDP
Reference Price: 126 RMB (cost-effective OE-quality heavy-duty replacement for Mitsubishi Pajero V97)
II. Compatibility & OE Reference Numbers
This HJDP wheel hub bearing assembly is fully compatible with Mitsubishi Pajero V97, perfectly replacing the following OE numbers, ensuring 100% in-situ installation without modification or calibration:
OE Interchange Numbers
3880A015, 906557
Applicable Models
Mitsubishi (Imported):
-
Mitsubishi Pajero V97 (All Trims)
Mounting Position: Front Wheel (Heavy-Duty Design, Fit for Off-Road Use)
III. Overall Structural Design
Adopts Heavy-Duty High-Precision Integrated Structure, integrating hub bearing core, high-strength mounting flange and ABS wheel speed sensor assembly (including black wear-resistant insulated wire harness + gray high-temperature resistant engineering plastic connector) into a ready-to-install unit. The solid and compact structure ensures easy assembly, excellent load-bearing capacity (adapting to the heavy-duty characteristics of Pajero V97), and can simultaneously meet the core needs of vehicle power transmission, wheel support and ABS system signal transmission, perfectly matching the off-road chassis design of Mitsubishi Pajero V97.
IV. Material & Process Details
|
Component
|
Material Selection
|
Process Treatment
|
Core Advantages
|
|
Bearing Body
|
High Carbon Chromium Bearing Steel (GCr15/SAE 52100)
|
Vacuum Quenching + Precision Grinding + Reinforced Anti-Rust Coating
|
Surface hardness up to 62HRC, core toughness 38HRC, balancing super wear resistance and strong impact resistance, ensuring stable operation in off-road environments
|
|
Mounting Flange
|
High-Strength Alloy Steel (Thickened Design)
|
Satin Finish + Precision Drilling + Stress Relief Treatment
|
Smooth and scratch-resistant surface, precise hole positions, high fit with vehicle steering knuckle, strong load-bearing capacity, resistant to deformation under heavy load
|
|
ABS Sensor Assembly
|
Black Weather-Resistant Rubber (Wire Harness) + Gray High-Strength Engineering Plastic (Connector)
|
Insulation Sealing + Snap-On Fixing + Anti-Tear Treatment
|
Resistant to high and low temperatures (-40℃~120℃), aging and wear; ensures accurate wheel speed signal transmission, compatible with original vehicle ABS/ESP system, adapting to off-road vibration
|
|
Sealing Assembly
|
High-Quality Nitrile Rubber + SPCC Steel Framework (Thickened Lip)
|
Multi-Lip Sealing + Oil-Resistant Coating + Dust-Proof Design
|
Effectively isolates dust, muddy water, sand and road debris, prevents lubricating grease leakage, and extends bearing service life in harsh off-road environments
|

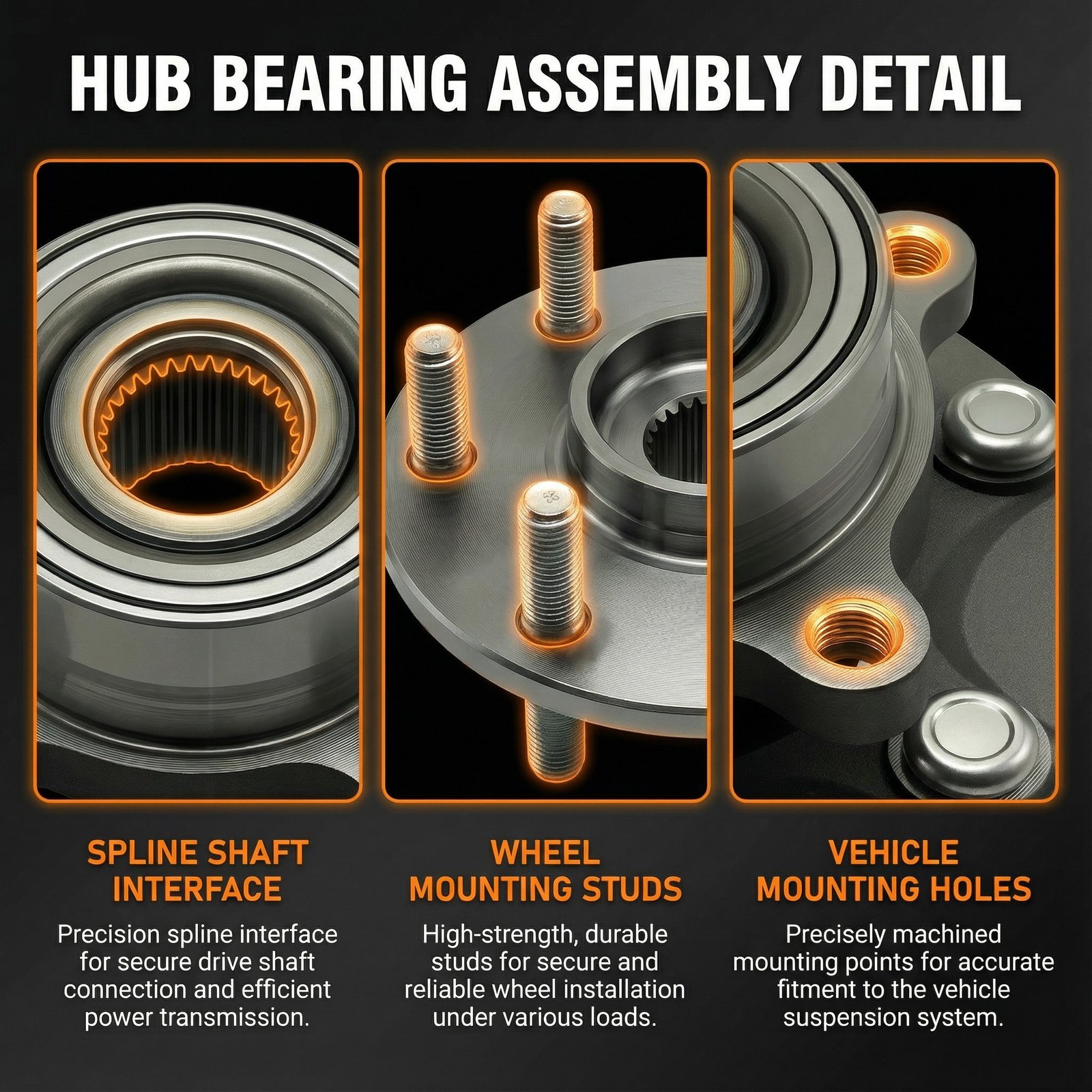

V. Key Detail Features
-
Wheel Mounting Surface: The HJDP brand logo and product code are clearly laser-engraved on the surface. 5 silver-gray high-strength wheel bolts (specification M12×1.5) are evenly distributed in a ring, ensuring stable fixation of the wheel even under off-road vibration. The gray ABS sensor connector is led out from the side, with a standard interface, facilitating quick and firm connection with the original vehicle wiring harness.
-
ABS Sensor Detail: Equipped with high-precision induction ring, perfectly matching the Mitsubishi Pajero V97 ABS system, ensuring accurate and stable wheel speed signal transmission, effectively preventing wheel lock during braking on off-road roads.
-
Side View Features: 4 threaded steering knuckle mounting holes are distributed on the edge of the flange with precise positions (no deviation), ensuring firm connection with the vehicle chassis. The ABS wire harness is fixed on the flange surface through a special anti-shake snap-on buckle, avoiding shaking, wear and tear during off-road driving.
-
Bearing End Face Details: The center is a precision internal spline shaft hole, used to fit with the vehicle half-shaft, ensuring stable power transmission without jitter or abnormal noise even under heavy load. The bearing outer ring is designed to match the original vehicle steering knuckle, ensuring no gap after assembly and strong stability.
-
Marking Information: The OE number (e.g., 3880A015) and product model are engraved on the flange surface, facilitating quick identification of applicable models and specifications for repair technicians and customers.

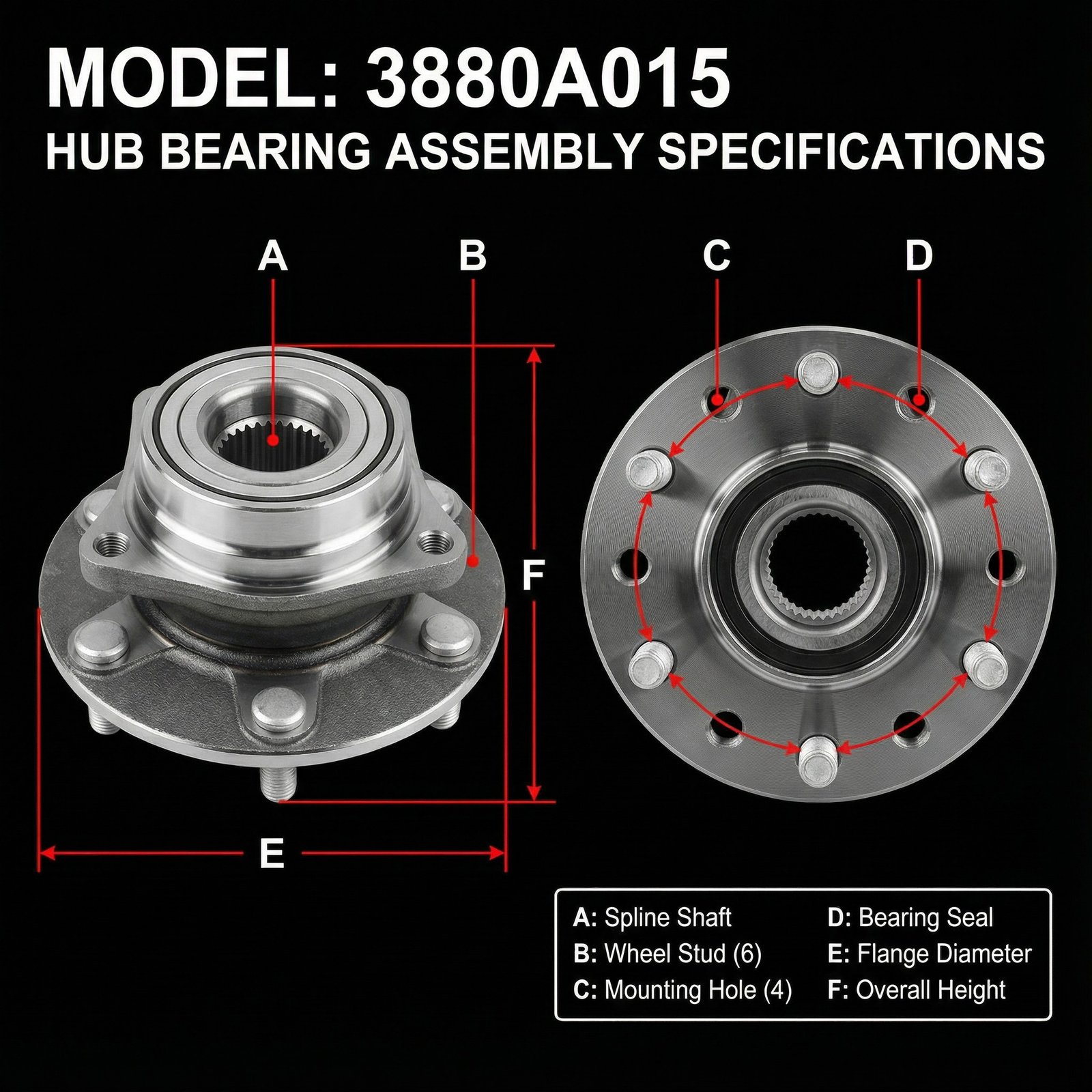

VI. Core Technical Specifications
|
Specification Category
|
Specification Details
|
|
Net Weight
|
4.9KG (thickened material selection, ensuring heavy-duty load-bearing performance for off-road use)
|
|
Overall Dimensions
|
170×170×175mm (Length × Width × Height)
|
|
Bearing Type
|
Heavy-Duty Integrated Wheel Hub Bearing (with ABS Sensor)
|
|
Wheel Bolt Specification
|
M12×1.5 (5 pieces)
|
|
Flange Diameter
|
158mm
|
|
Mounting Hole Pitch
|
114.3mm
|
|
Core Functions
|
Power Transmission + Wheel Support + ABS Wheel Speed Signal Collection (Off-Road Adaptation)
|
VII. Core Product Advantages
-
Perfect Fitment for Mitsubishi Pajero V97: 100% OE standard design, specifically compatible with Mitsubishi Pajero V97, direct replacement without modification, perfectly matching the off-road chassis.
-
Heavy-Duty Design: 4.9KG thickened structure, high-strength materials and reinforced process, suitable for the heavy-duty and off-road characteristics of Pajero V97, easily handling complex off-road terrain.
-
Reliable ABS Signal Transmission: High-precision ABS sensor with anti-shake design, ensures stable signal transmission to ESP/ABS system, enhancing braking safety on off-road roads.
-
Superior Sealing & Durability: Multi-lip thickened sealing assembly, effectively isolating sand, muddy water and debris; GCr15 bearing steel with vacuum quenching, extending service life in harsh off-road environments.
-
Ultra-Quiet & Stable Operation: Precision ground bearing surface and high-quality synthetic lubricating grease, effectively reducing driving noise and vibration, improving driving comfort both on and off road.
-
Easy Installation: Ready-to-install integrated design, no additional assembly required, saving installation time and labor costs for repair shops and off-road enthusiasts.
VIII. HJDP Professional Installation Tips
1. Before installation, confirm that the OE number and vehicle model (Mitsubishi Pajero V97) match to avoid installation errors. 2. Keep the flange and steering knuckle mounting surfaces clean and free of debris to ensure a tight fit and stable operation in off-road conditions. 3. Tighten the bolts according to the original factory torque standard (recommended 85-95 N·m) to ensure firm installation and avoid loosening during off-road driving. 4. Check the ABS sensor connection after installation to ensure normal signal transmission; test the ABS function before formal off-road use. 5. Regularly inspect the bearing for abnormal noise or vibration after off-road driving, and maintain or replace it in time if necessary.
IX. About HJDP
HJDP is a professional manufacturer of automotive chassis and transmission components, focusing on OE-level replacement parts for Mitsubishi and other mainstream automotive brands, especially heavy-duty and off-road vehicle accessories. All products are produced in strict compliance with IATF16949 quality management system, undergoing strict quality inspection before leaving the factory, ensuring high quality, stability and reliability. We are committed to providing cost-effective auto parts for global customers, meeting the needs of daily driving and off-road scenarios.
